Huron Speed Products

Huron Speed Truck T4 HOT-SIDE - 1999-2013

Huron Speed Truck T4 HOT-SIDE - 1999-2013

$1,949.00
$1,949.00
Sale Sold out

This is currently build per order. Please reach out for current, estimated build times. If an order is placed we will get it in motion however please understand there will be a lead time associated with it. Thanks!



Huron Speed V4 T4 Turbo Piping for 99-13 GM Silverado/Sierra

*Fits 2wd, 4wd, AWD!

*NOTE: Hot-side piping only



New updates to the T4 kit:


*Updated crossover. This is a 2-piece design featuring a new design double-slip connection. This style of connection allows expanding and contracting without leaking allowing for some movement as well as a very easy installation and alignment to the manifolds. Not to mention improved ground clearance and no worries of a flex section failure.


*DP connection tubes for OEM catback connections! Our previous kits would only supply a connection tube for the newer style ball flange from GM, we now offer styles for the 99-07 Classic body w/ 2-bolt flange and also 09-13 Newer body w/ ball/socket flange as an option if you wish to add one in.

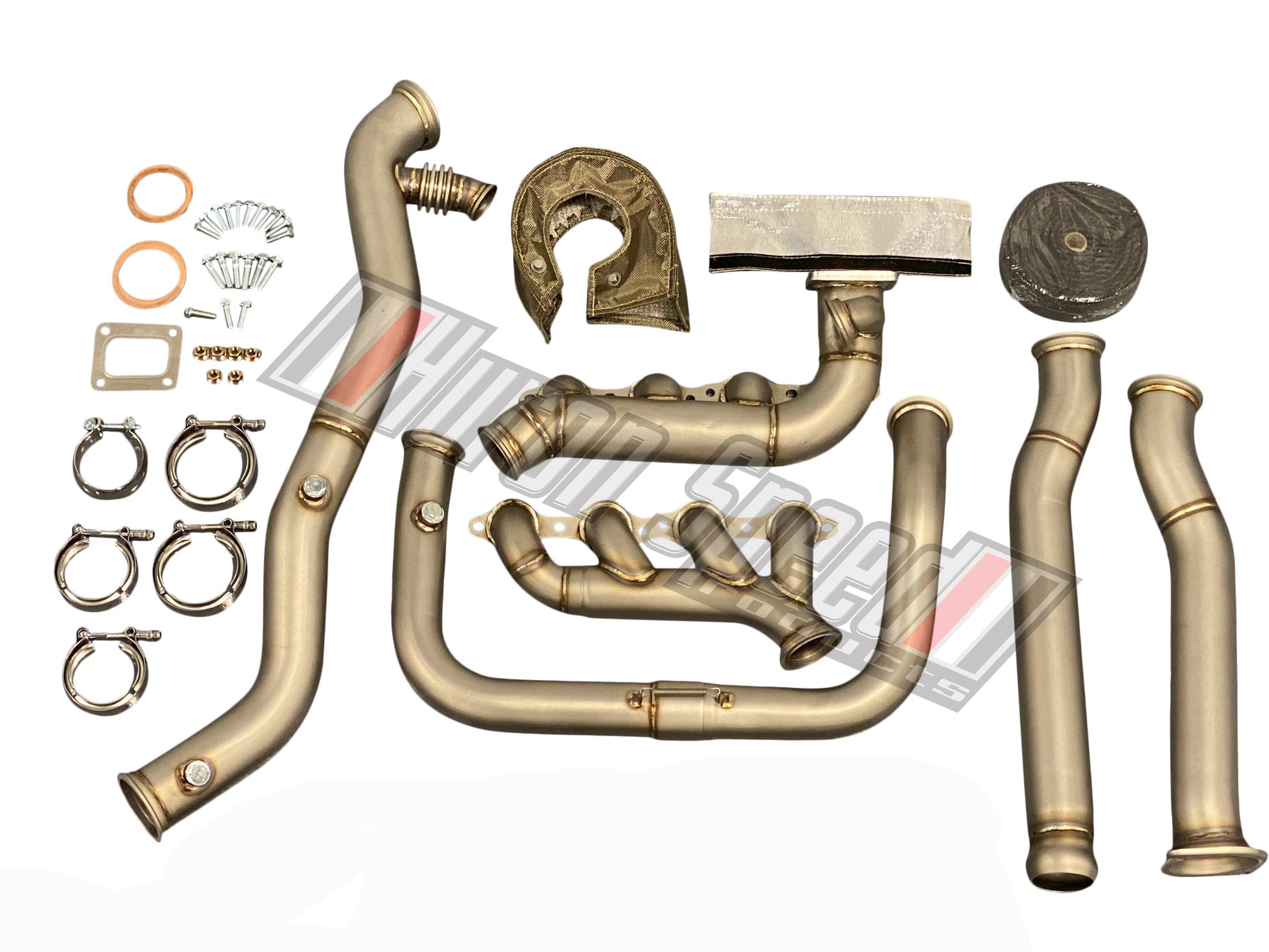

V4 T4 Kit Components:

-Stainless .120 wall Passenger turbo log and Stainless drivers side manifolds w/ interlocking V-band flanges


-New improved Stainless crossover with double-slip connection for easier install and alignment of interlocking V-band flanges


-3" Stainless dp with wastegate recirculation and bung for wideband O2 sensor


*Optional 2nd piece 3" downpipe to connect to OEM Catback location.


-All required v-band Clamps


-Included roll of heat wrap


-Included T4 turbo blanket


-Hardware to Install


*Optional custom A/C line to provide plenty of clearance without having to hassle with massaging your OEM hardline






Features & Benefits of the Huron Speed Truck V4 Intercooled turbo kit:

*Extra thick .120 wall stainless steel turbo manifold will have no issues holding up to the high heat and weight of the turbocharger. Worries about cracking manifolds is a thing of the past!

*Wastegate port is in the line of flow at the front of the manifold which will collect exhaust gasses from the entire system (both banks) as well as using a larger 44mm flange to control boost. No need to worry about boost creep issues!

*Wastegate tube features a nice bellow in line for an easy install and alignment of the wastegate recirc. with the downpipe for the recirculating WG discharge!

*No flex is used in the crossover pipe for worry of blowing. Added double slip to allow easy alignment, seal, and connection to the manifolds.

*Recirculating the WG Discharge into the downpipe is a STANDARD feature!

*Bungs for Primary O2 Sensors AND for a wideband O2 with plug is a STANDARD feature!

*System as a whole was made to provide a clean looking install, using great materials, built to make for an easy install without having to fight aligning pipes together along with easy to install v-band clamps. Boost control with a proper wastegate placement was high on the list to prevent boost creep.



**Piping kit only, requires other items noted to run, vehicle will not run without these outside sourced items completed by you, therefore sold as show only.



**Retains factory Air Conditioning, may require some minor massaging to OEM hardline near the dryer depending on year OR add on our Custom A/C Line for better clearance around your downpipe!



*Include a Turbo, Wastegate and other options from the drop-down menus. For recommendations or questions on components, please feel free to e-mail us direct and ask at: huronspeedproducts@gmail.com
