Huron Speed Products
LS-Swap Fox Single T6 Turbo Kit
LS-Swap Fox Single T6 Turbo Kit
Regular price
$2,999.00
Regular price
Sale price
$2,999.00
Unit price
/
per
Couldn't load pickup availability
Huron Speed Fox Mustang LS-Swap Single T6 Turbo Kit
Kit is currently Discontinued

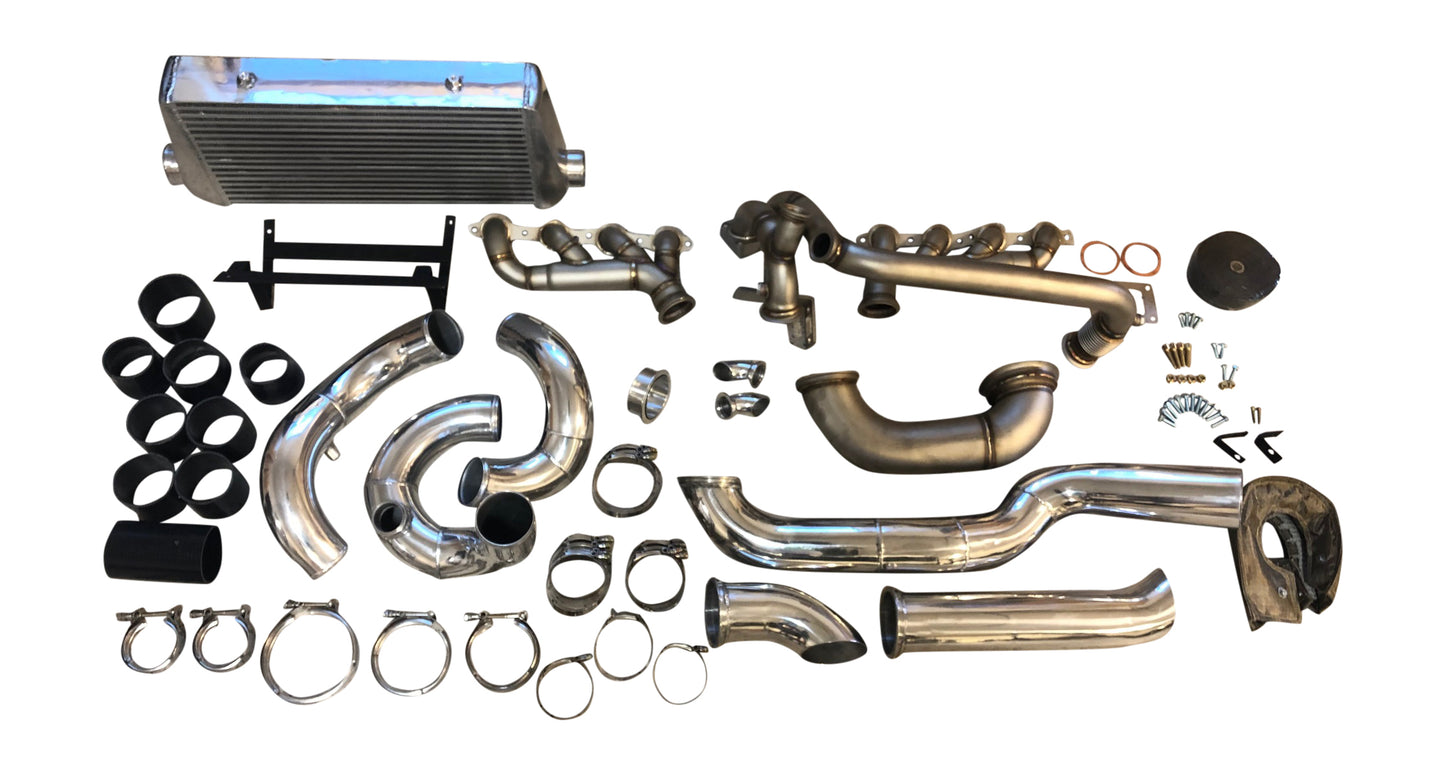

Kit Features:

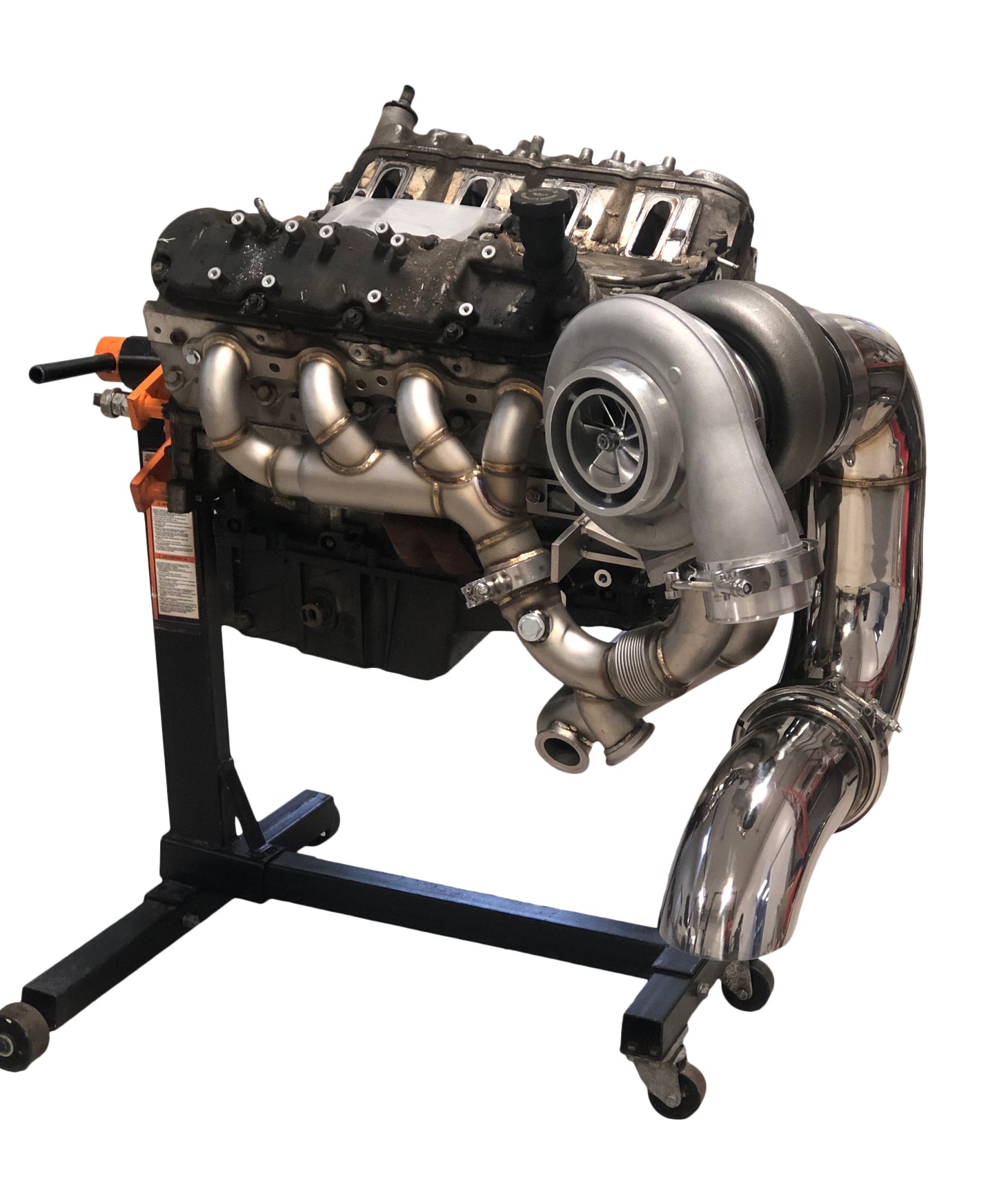

- Fits T6 S400Turbochargers ranging from S475s up to Billet S494/104 with Race-Cover. This allows us to supply a very quick spooling set-up on a 5.3l engine, up to 1300+ RWHP capability

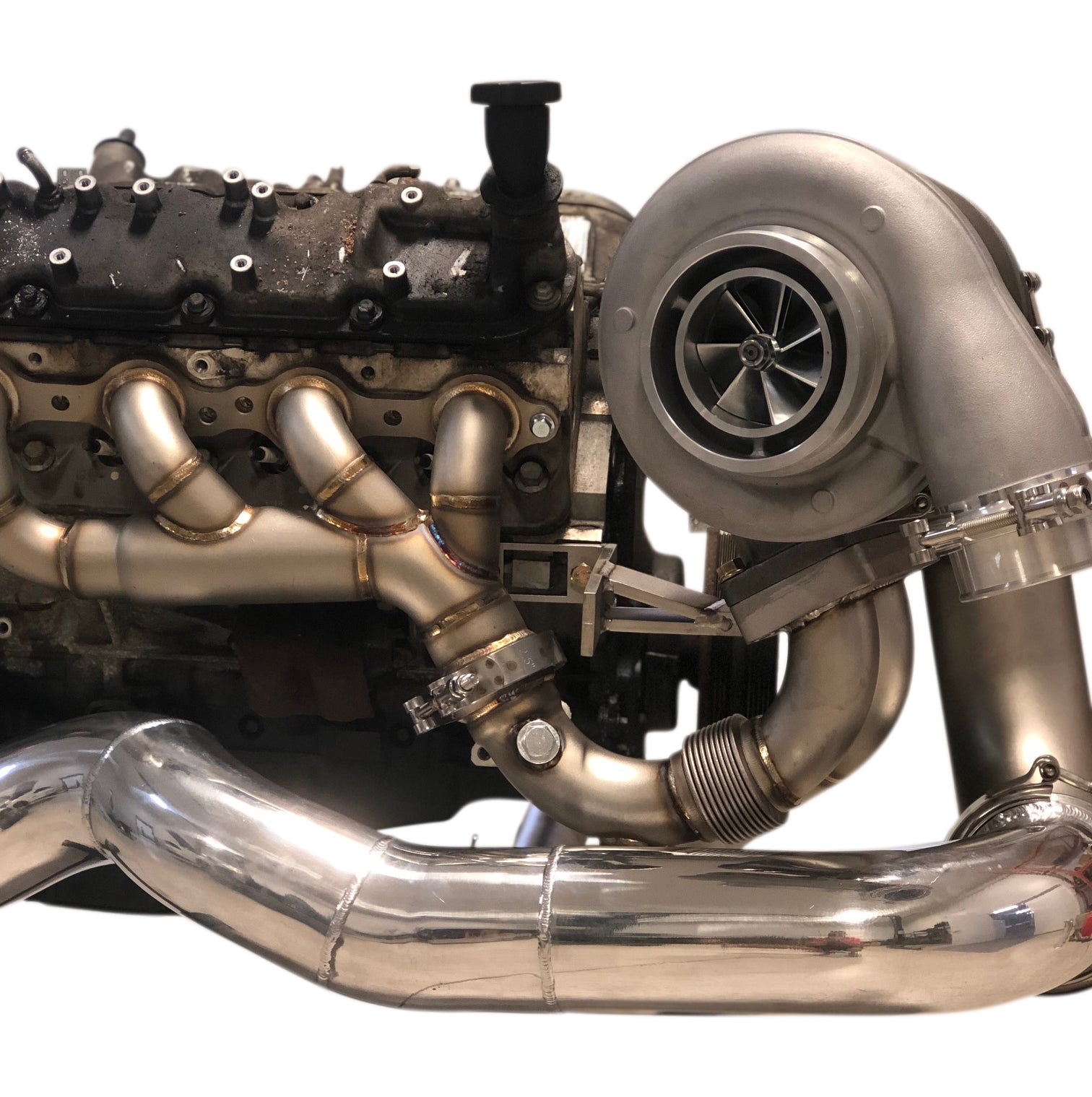

- Extra thick .120 wall Stainless manifolds, v-banded for easy connection
- Extra thick .120 wall Stainless Hot-side crossover with 44-46mm WG flanges on each bank

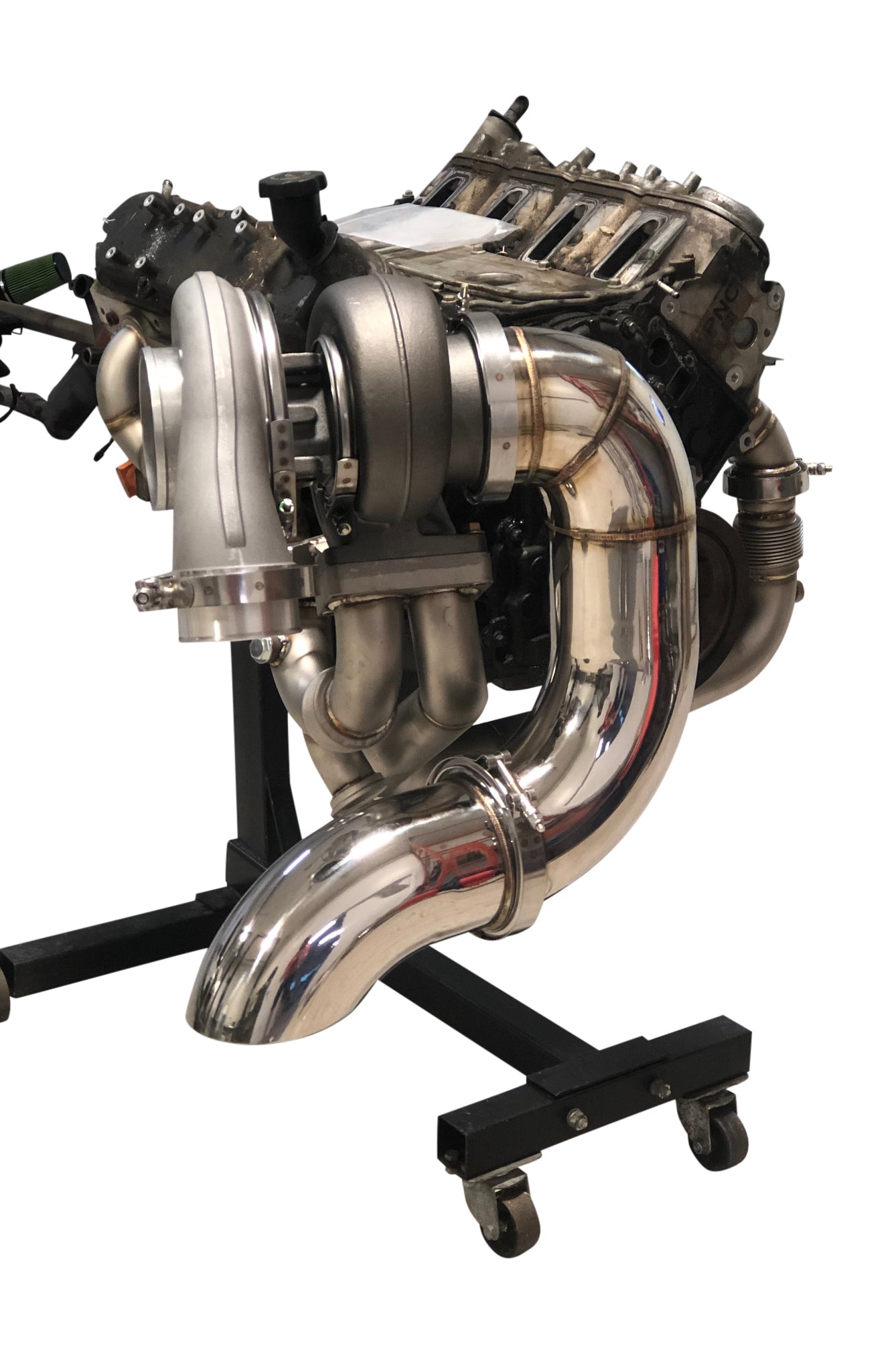

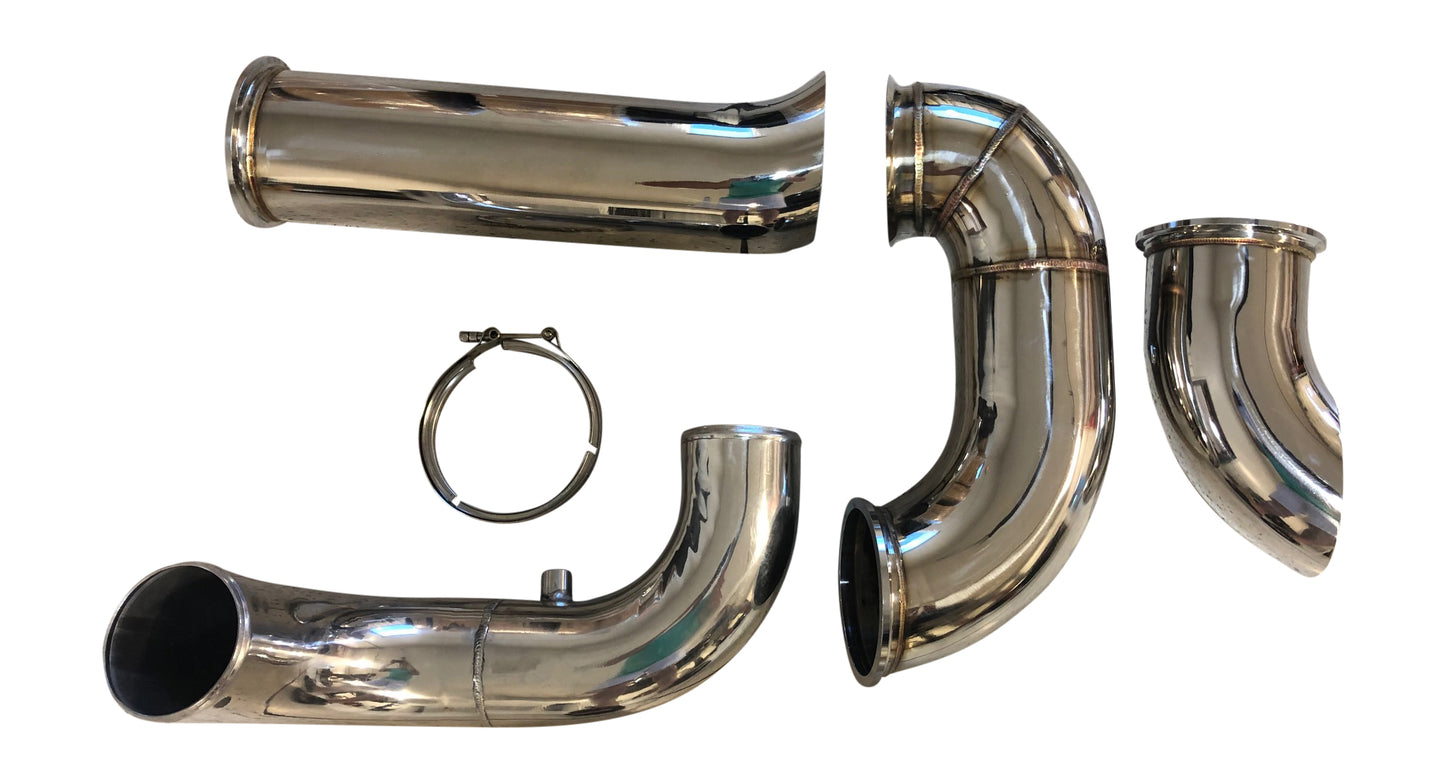

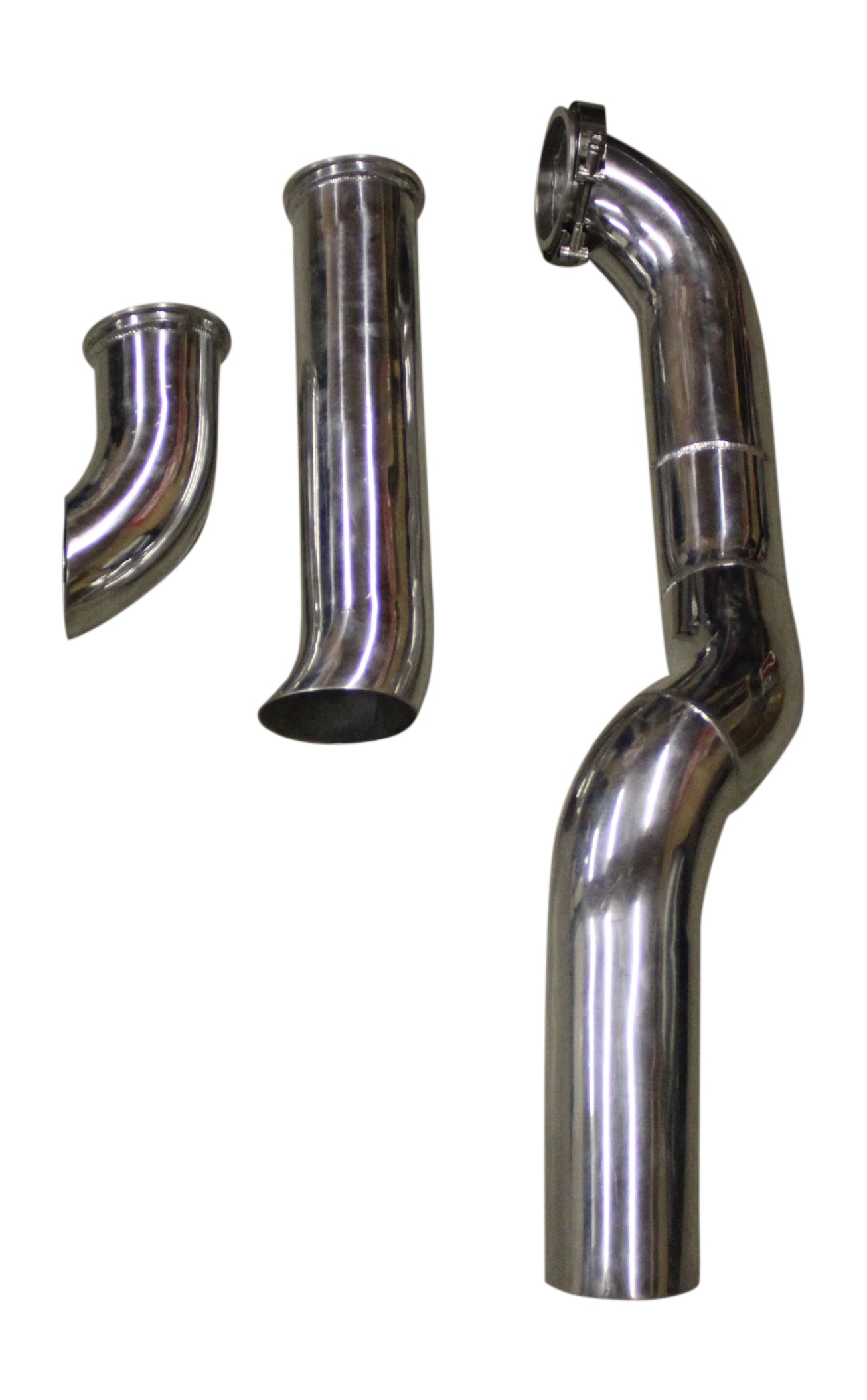

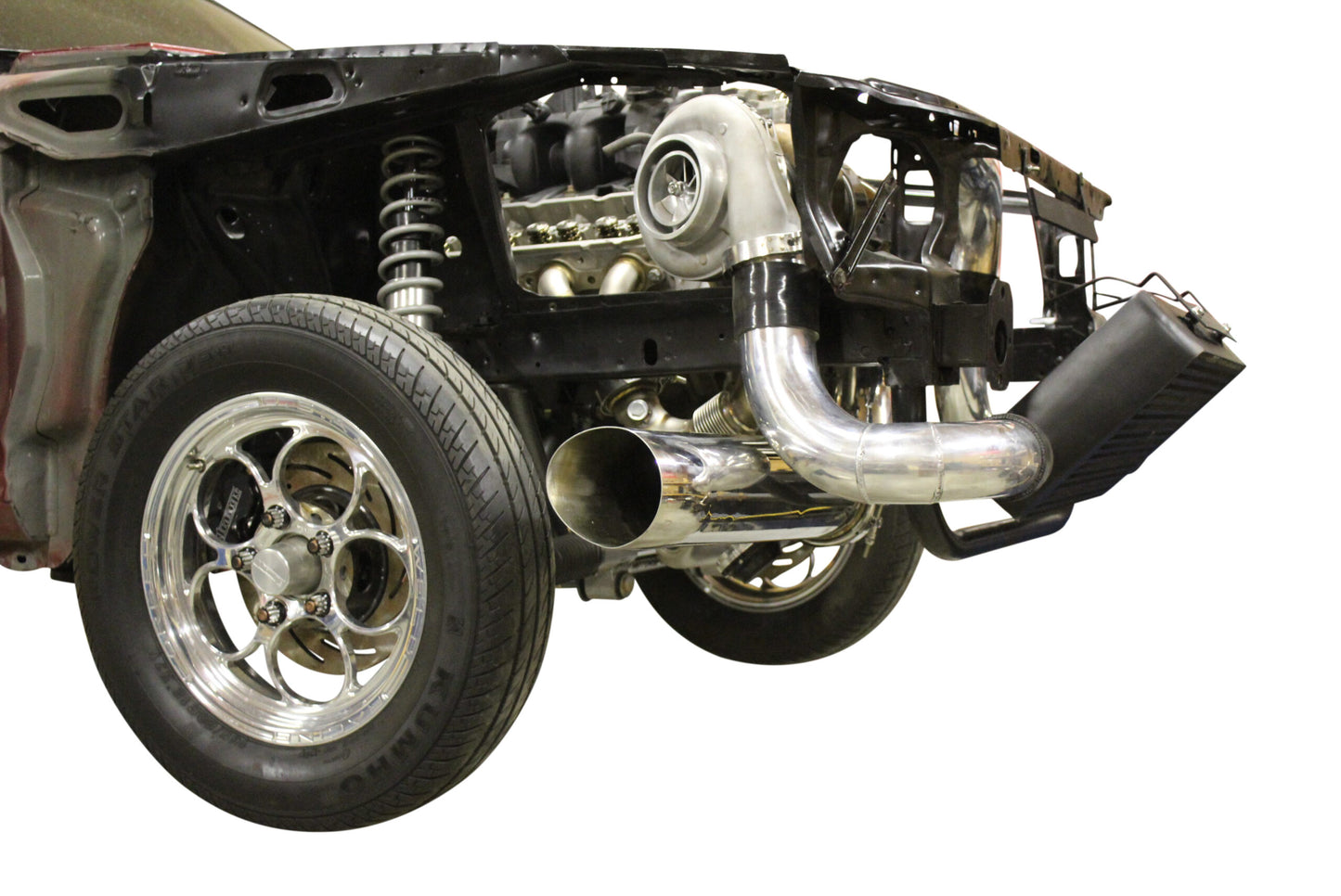

- Multiple downpipe options included STANDARD. 5" to 4" tube off the S400 turbo can connect to (2) supplied options: 4" dump and 4" bumper exit with tear drop exit
- OPTIONAL 4" routed to the rear through the K-member (aluminum).
- OPTIONAL Full 5" dump or 5" bumper exit exhaust (Stainless)

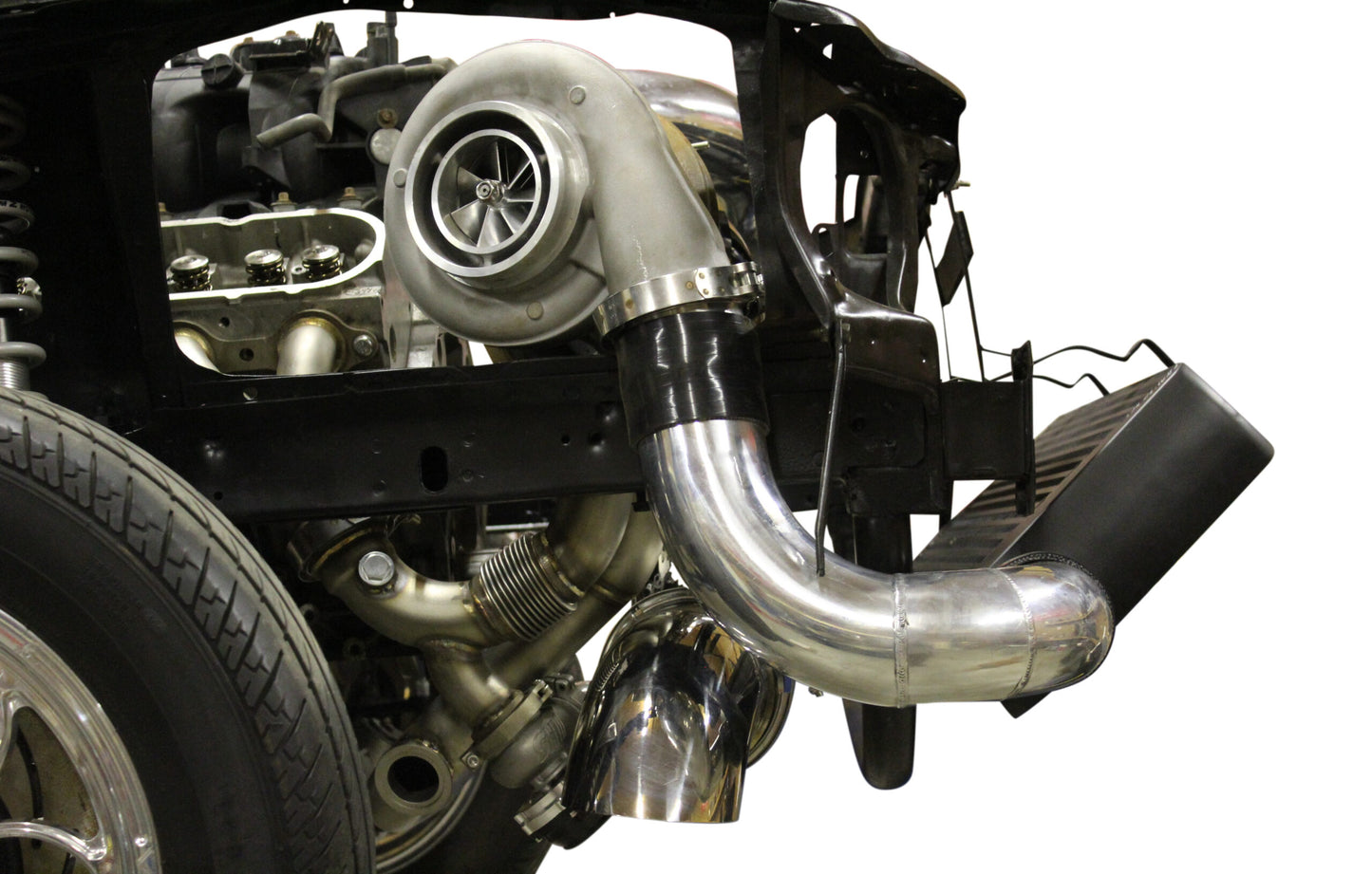

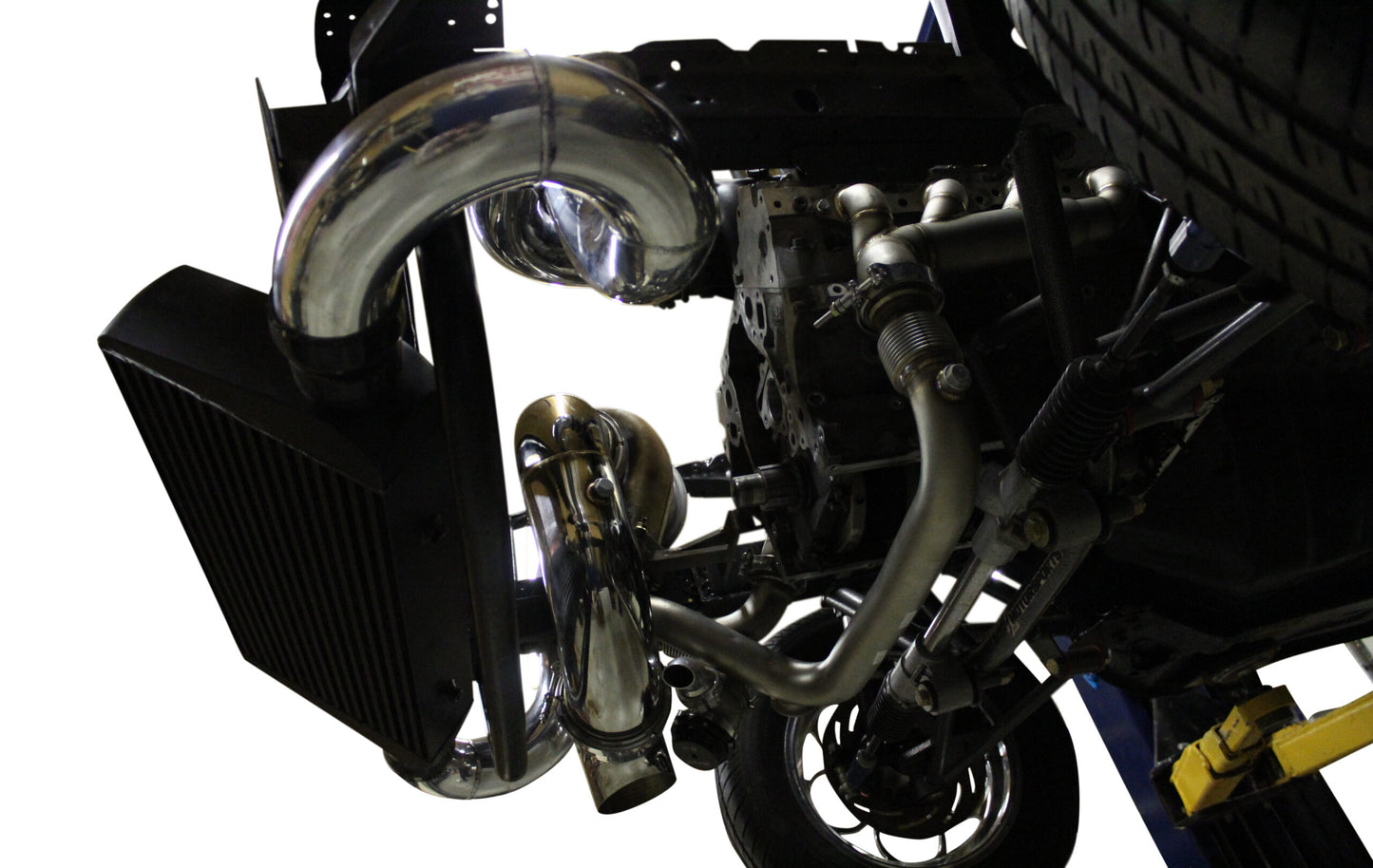

- 3.5" Aluminum Cold-Side tube from Turbo outlet to Intercooler
- 3.5" Aluminum Cold-side tube from Intercooler to Throttle Body w/ 50mm BOV flange and 3/8" NPT IAT Sensor bung.

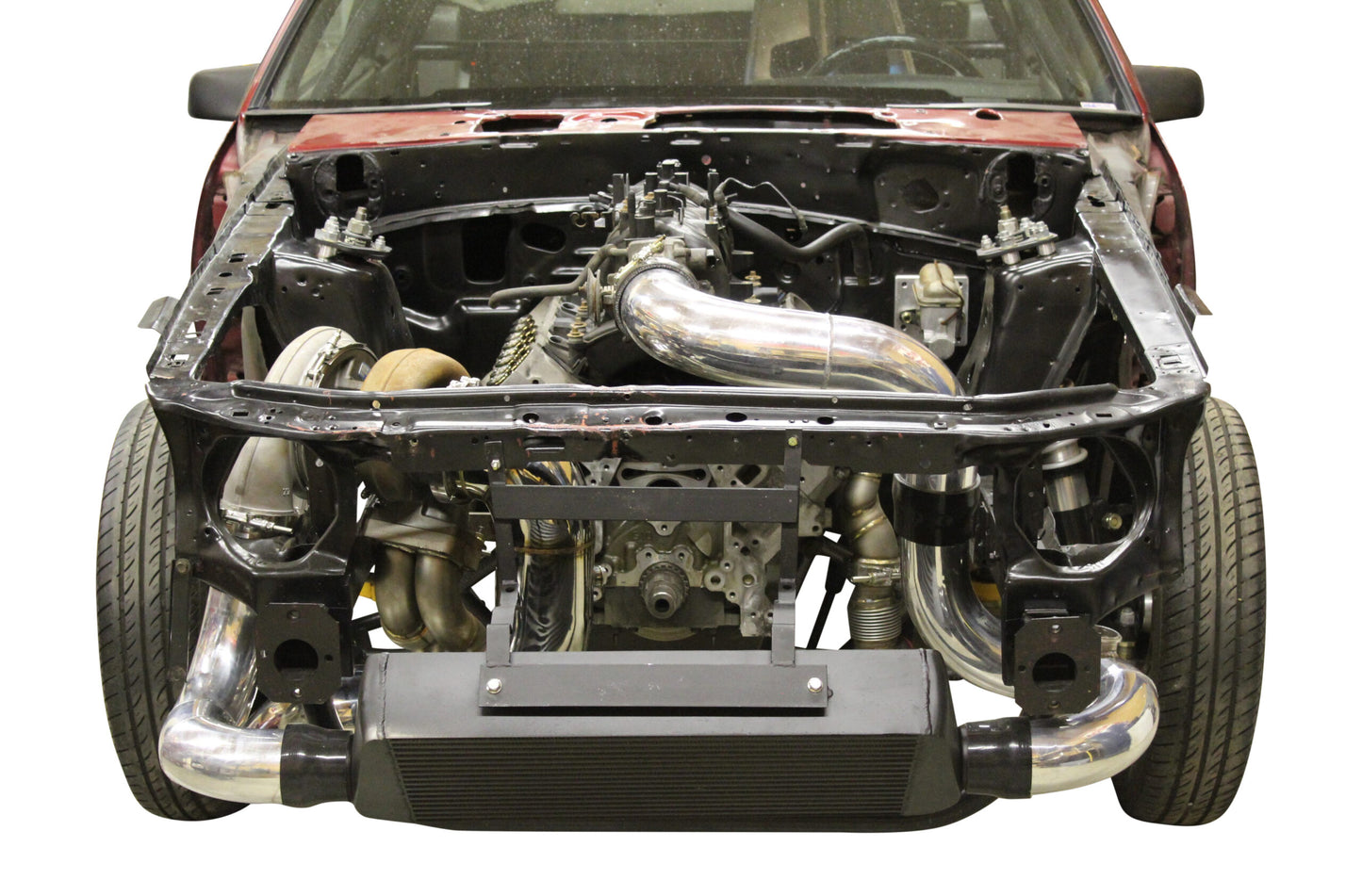

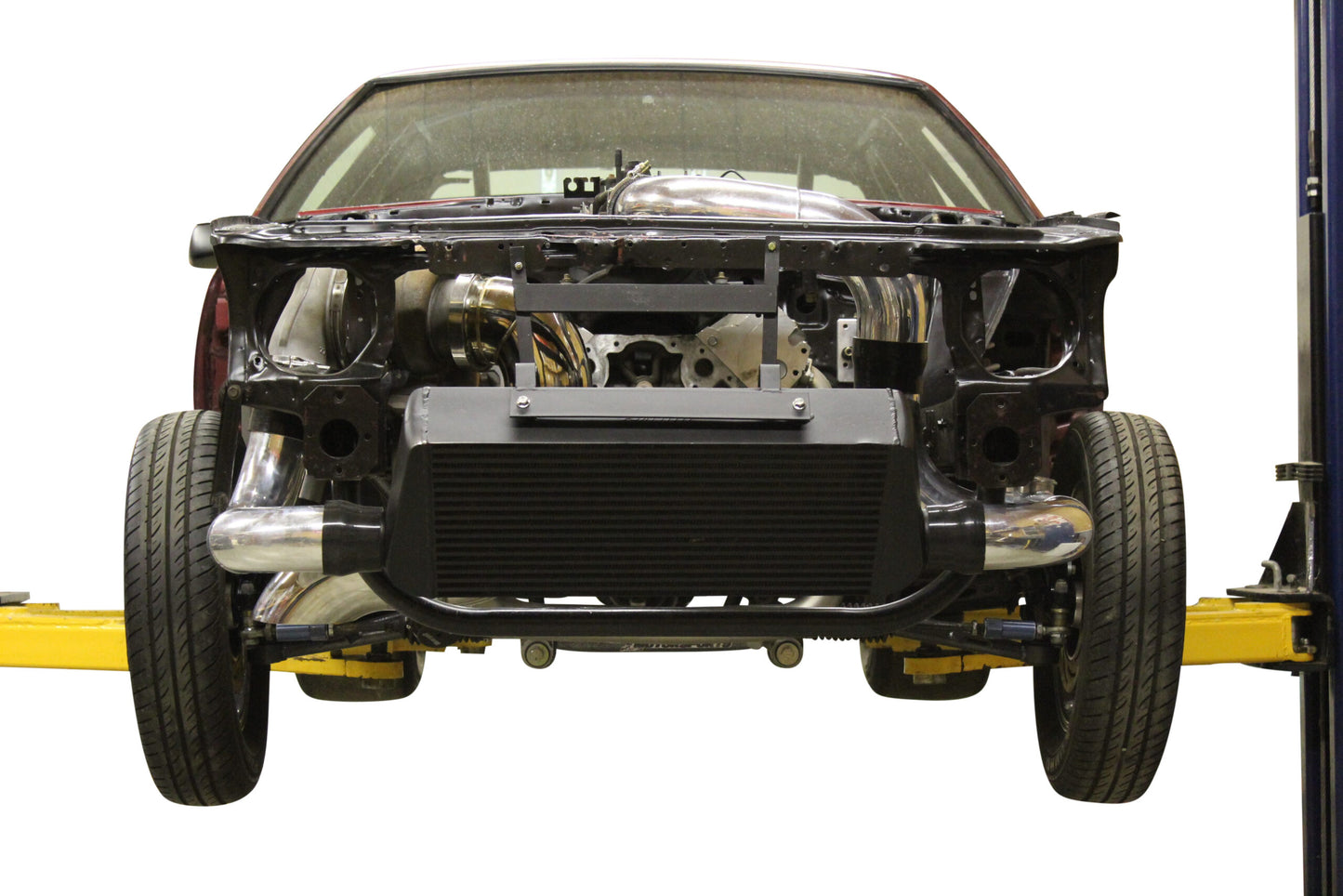

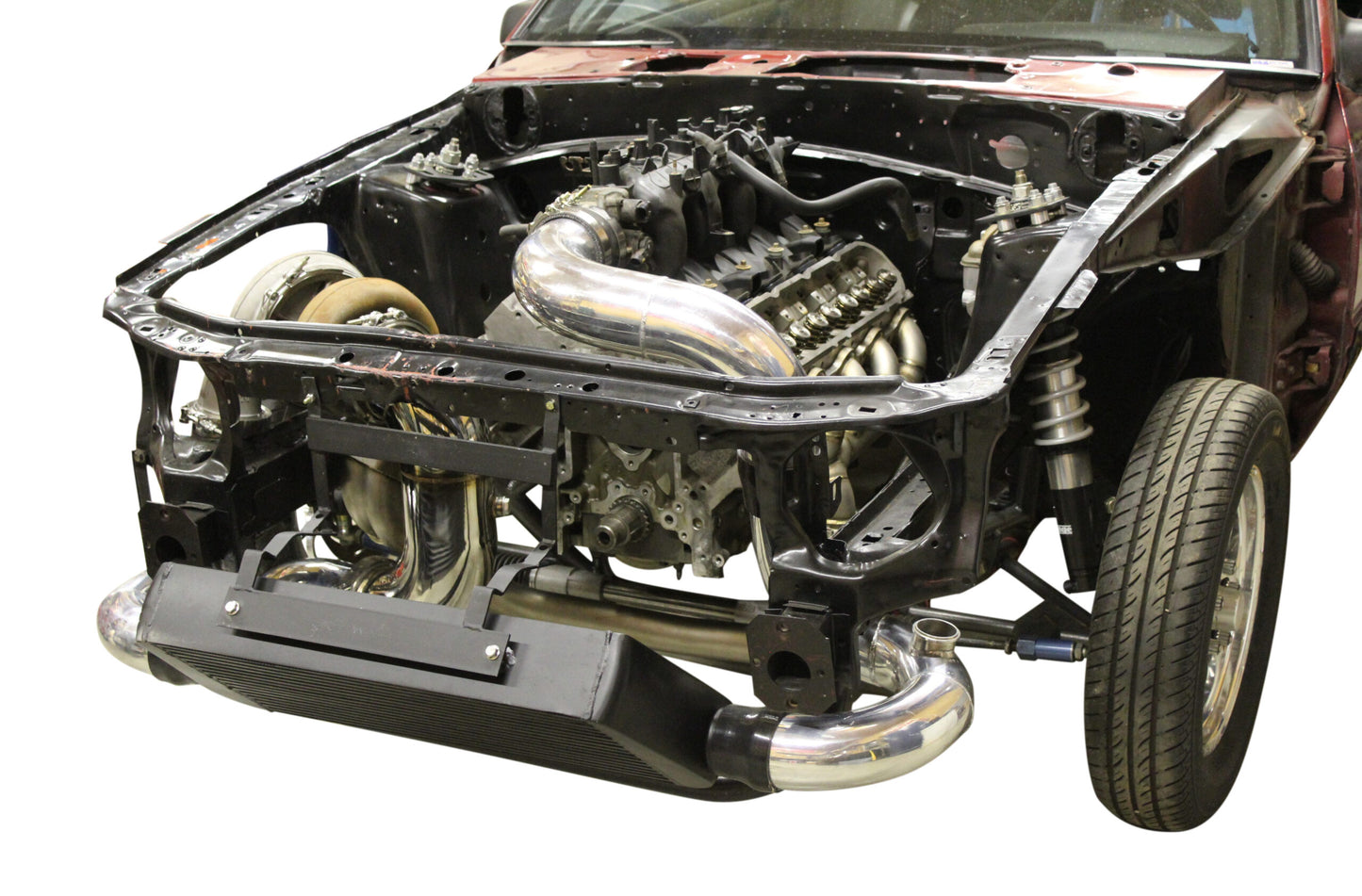

- Base 4" Thick intercooler is standard in the kit, brackets to mount to frame as shown included
- Included T6 Turbo Blanket and roll of heat wrap
- Included Gaskets and Grade 8 hardware
- Included all necessary Silicone couplers and T-bolt clamps
- Included all necessary V-band clamps
- Designed around Fbody accessories and a car height Intake manifold. Can fit another intake styles with some minor modifications to the cold-side tubes.
- Includes all necessary brackets and hardware to mount the intercooler
- Designed around AJE K-member
-This base kit will Require: Turbo, Wastegates, BOV. Add these in from our drop-down menu to suit your needs/goals/budget.
