Huron Speed Products

Huron Speed Truck T4 Kit - 1999-2013 BUNDLE

Huron Speed Truck T4 Kit - 1999-2013 BUNDLE

Regular price $3,995.00
Regular price Sale price $3,995.00
Sale Sold out

1 available. Can ship with ~1-week

Bundle Includes:

-Huron Speed Truck T4 Kit Base
-Base 4" Intercooler
-VSRacing Next Gen Billet 7875 T4 .96 Turbo
-Huron Speed HS44 wastegate
-Huron Speed HS50 BOV
-Huron Speed Boost/Vacuum Reference Kit
-Huron Speed AC Line Relocation kit
-$264 discount
** $3995 plus ship
** Available to ship in ~1-week
Add our Stage 2 fuel system at a $150 discount with the kit.


Huron Speed V4 T4 Kit for 99-13 GM Silverado/Sierra

*Fits 2wd, 4wd, AWD, 1500 and 2500 trucks!

*NOTE: 99-02 trucks may require some minor modifications to the cold-side to fit. Spaces are much tighter on the 99-02 trucks on the grill and headlights. We recommend 99-02 trucks opt for the 3" intercooler and expect some minor tweaks to the cold-side.



New updates to the T4 kit:


*Updated crossover. This is a 2-piece design featuring a new design double-slip connection. This style of connection allows expanding and contracting without leaking allowing for some movement as well as a very easy installation and alignment to the manifolds. Not to mention improved ground clearance and no worries of a flex section failure.


*DP connection tubes for OEM catback connections now! Our previous kits would only supply a connection tube for the newer style ball flange from GM, we now offer 2 styles as an option if you wish to add one in, the ball style as well as the earlier 2-bolt connection. 99-07 classic body style with the 2-bolt flange or 09-13 new body with the ball/socket clamp style.





New updates to the cold-side:

*Much more simplified routing. Previous design would route under the frame to the intercooler and required different versions to fit classic and newer body styles. The new design wraps around the radiator and fits BOTH classic and newer body style trucks!

*All of your MAF or No MAF needs! We now include a very simple connection piece in so you can fit up any of your needs for MAF or Speed Density. We include the couplers needed if you wish to retain the older barrel style MAF. We include a section to use the newer card style MAF. Lastly we include a section with a threaded IAT sensor bung if you wish to go Speed Density, we have all of your bases covered!

*Cleaner look! Cold side tubing features a very nice and clean look in the engine bay, opposed to the old style that would quickly get lost. We understand functionality is most important, but to also look good doing it!

*Solution to the expansion tank! Previously the OEM coolant expansion tank would get in the way of cold side routing with the many designs available. We solved this by simply removing the OEM expansion tank (which is extremely ugly under the hood as well) and replacing with a very nice fabricated aluminum overflow tank. We now include a new radiator fill area that easily installs in the upper radiator hose to clean everything up and give a lot more room for a clean cold-side install!

*Cold side! Our cold-side was designed to work on both Classic body style trucks and Newer 07.5-13 body style truck. This means if you ever change trucks that happens to be the different body, everything will swap right over! Or if for some reason you need to let go of your turbo kit, your market to sell to will be greatly increased! Did I mention it also all bolts right up and fits the T6 hot-side? That's right, the cold side now fits and includes everything needed to fit Both the T4 and the T6 hot-sides, as well as Classic and NNBS Body Styles!

*99-02 front ends may have to do some minor modifications to fit around their head-lights and tighter spaces.

*Accessories. Kits still include everything you need to set up the oil feed and return on the turbo, all of your gaskets for the turbo and new v-band copper O-ring gaskets, coolant hose extensions, Large 4" intake tube with very large 4" filter, Blanket for your turbo, and more heat protection such as a full roll of heat wrap for anything you may need!



Recap:

Enhancements in all areas of the kit for improved fitment, function, ease of install, and compatibility.

If you ever change body styles, the kits now fit Classic and NNBS, everything needed for the changes in body styles in included!

If you ever want to switch from T4 to T6, changes are easy and the entire cold-side fits both!

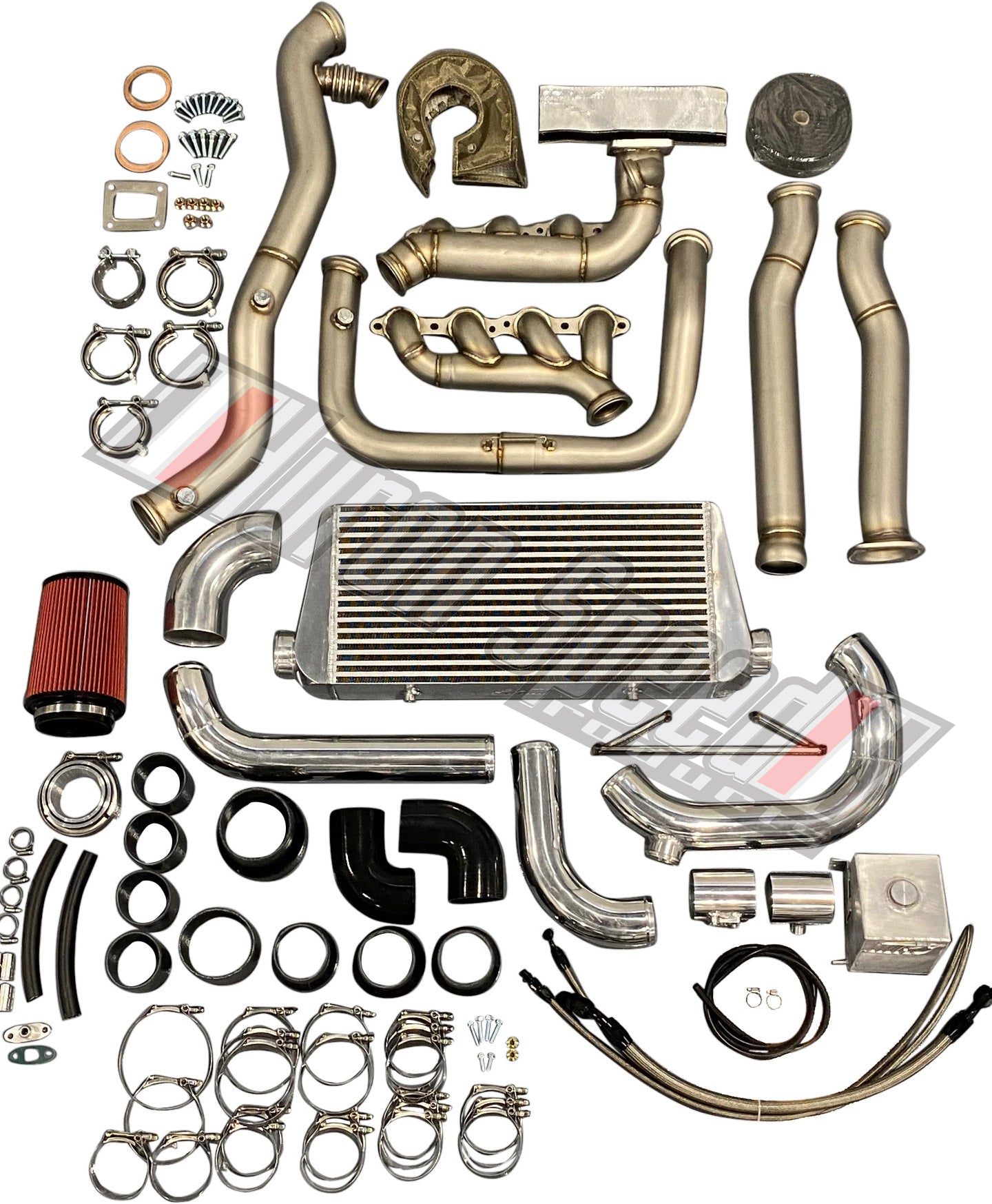

V4 T4 Kit Components:

-Stainless .120 wall Passenger turbo log and Stainless drivers side manifolds w/ interlocking V-band flanges


-New improved Stainless crossover with double-slip connection for easier install and alignment of interlocking V-band flanges


-3" Stainless dp with wastegate recirculation and bung for wideband O2 sensor


*Optional 2nd piece 3" dp to connect to OEM Catback location (both 2-bolt and ball/socket styles!)


-3-piece aluminum cold-side piping allows for use of a Barrel Style MAF for earlier model trucks, Card Style MAF for later model trucks, or No MAF w/ external IAT sensor bung for those running Speed Density, we covered all of the options!


-New 1-piece Intercooler bracket, bolt on


-Coolant Overflow tank, new Fill Tee and hose to replace OEM Expansion tank.


-All required Clamps/Couplers


-Included coolant line extension fittings


-Included Oil feed and drain line kit


-Included turbo air intake (4") with air filter


-Included roll of heat wrap


-Included T4 turbo blanket


-Hardware to Install


*Optional custom A/C line to provide plenty of clearance without having to hassle with massaging your OEM hardline




**Piping kit only, requires other items noted to run, vehicle will not run without these outside sourced items completed by you, therefore sold as show only.




Features & Benefits of the Huron Speed Truck V4 Intercooled turbo kit:

*Extra thick .120 wall stainless steel turbo manifold will have no issues holding up to the high heat and weight of the turbocharger. Worries about cracking manifolds is a thing of the past!

*Wastegate port is in the line of flow at the front of the manifold which will collect exhaust gasses from the entire system (both banks) as well as using a larger 44mm flange to control boost. No need to worry about boost creep issues!

*Wastegate tube features a nice bellow in line for an easy install and alignment of the wastegate recirc. with the downpipe for the recirculating WG discharge!

*No flex is used in the crossover pipe for worry of blowing. Added double slip to allow easy alignment, seal, and connection to the manifolds.

*Recirculating the WG Discharge into the downpipe is a STANDARD feature!

*Bungs for Primary O2 Sensors AND for a wideband O2 with plug is a STANDARD feature!

*System as a whole was made to provide a clean looking install, using great materials, built to make for an easy install without having to fight aligning pipes together along with easy to install v-band clamps. Boost control with a proper wastegate placement was high on the list to prevent boost creep.

*Cold Side and Intake Tubing made from Aluminum provide clean filtered air intake for the turbocharger as well as from the intercooler into the throttle body.

*Cold Side Tubing features a 50mm BOV flange and provisions to run any of the 3 MAF Setups (Barrel style for earlier year trucks, Card style for later year trucks, and No MAF w/ external IAT sensor bung for those running Speed Density.

*Included fabricated Coolant Overflow tank and Fill Tee removes the OEM expansion tank to allow for more room and a cleaner installation.


**Retains factory Air Conditioning, may require some minor massaging to OEM hardline near the dryer depending on year OR add on our Custom A/C Line for better clearance around your downpipe!

**Intercooler and cold-side piping installation requires movement of Trans-cooler, and minor trimming possible to grill and 2 ears on bumper to fit the intercooler depending on your year. Bracket included to add a larger Tru-Cool transmission cooler under the Intercooler *recommended to replace the OEM*


*Include a Turbo, Wastegate, BOV and other options from the drop-down menus. For recommendations or questions on components, please feel free to e-mail us direct and ask at: huronspeedproducts@gmail.com
