98-02 F-body T4 Turbo Kit Oil-Lines

Oil feed and drain lines with fittings

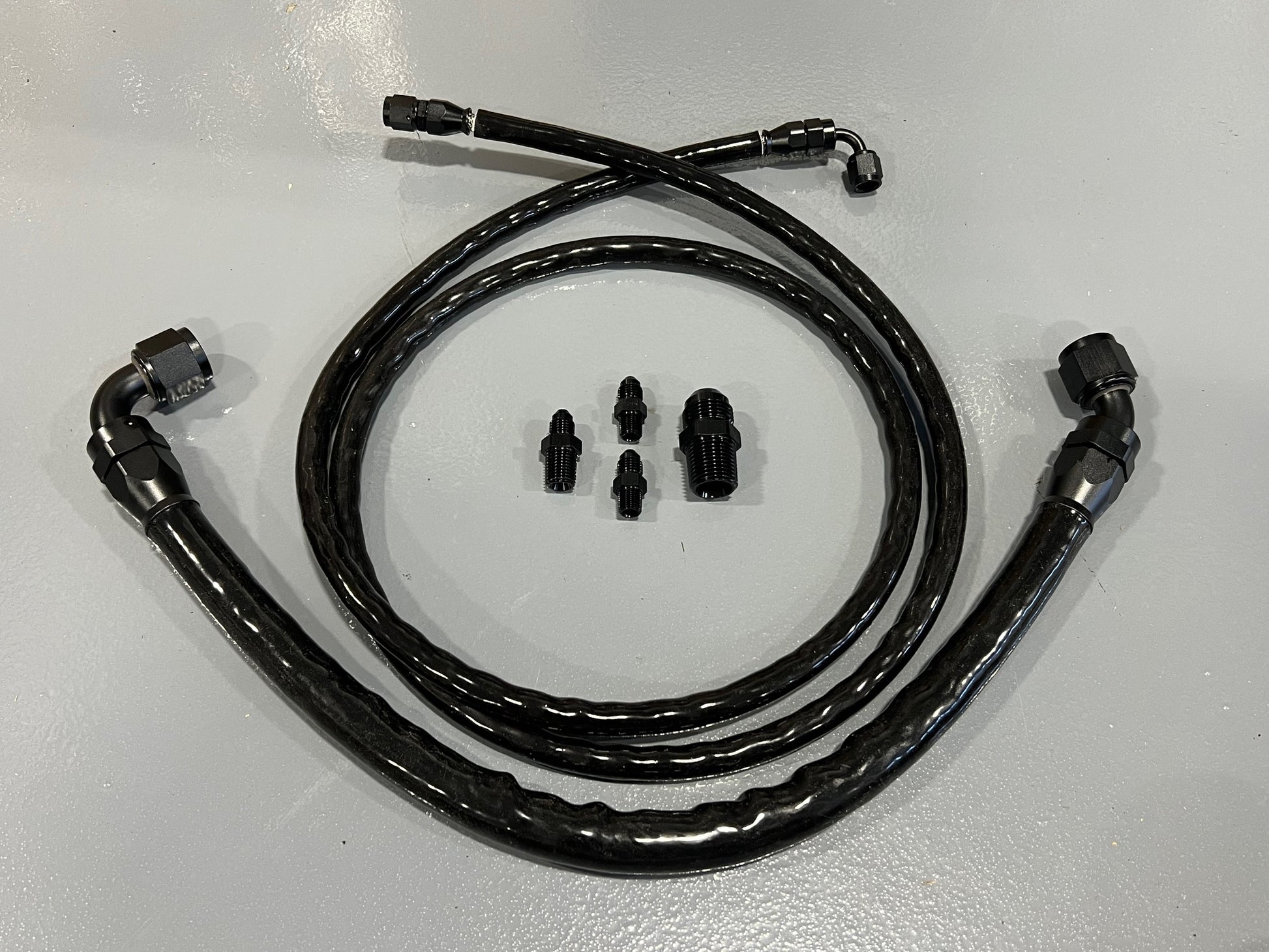

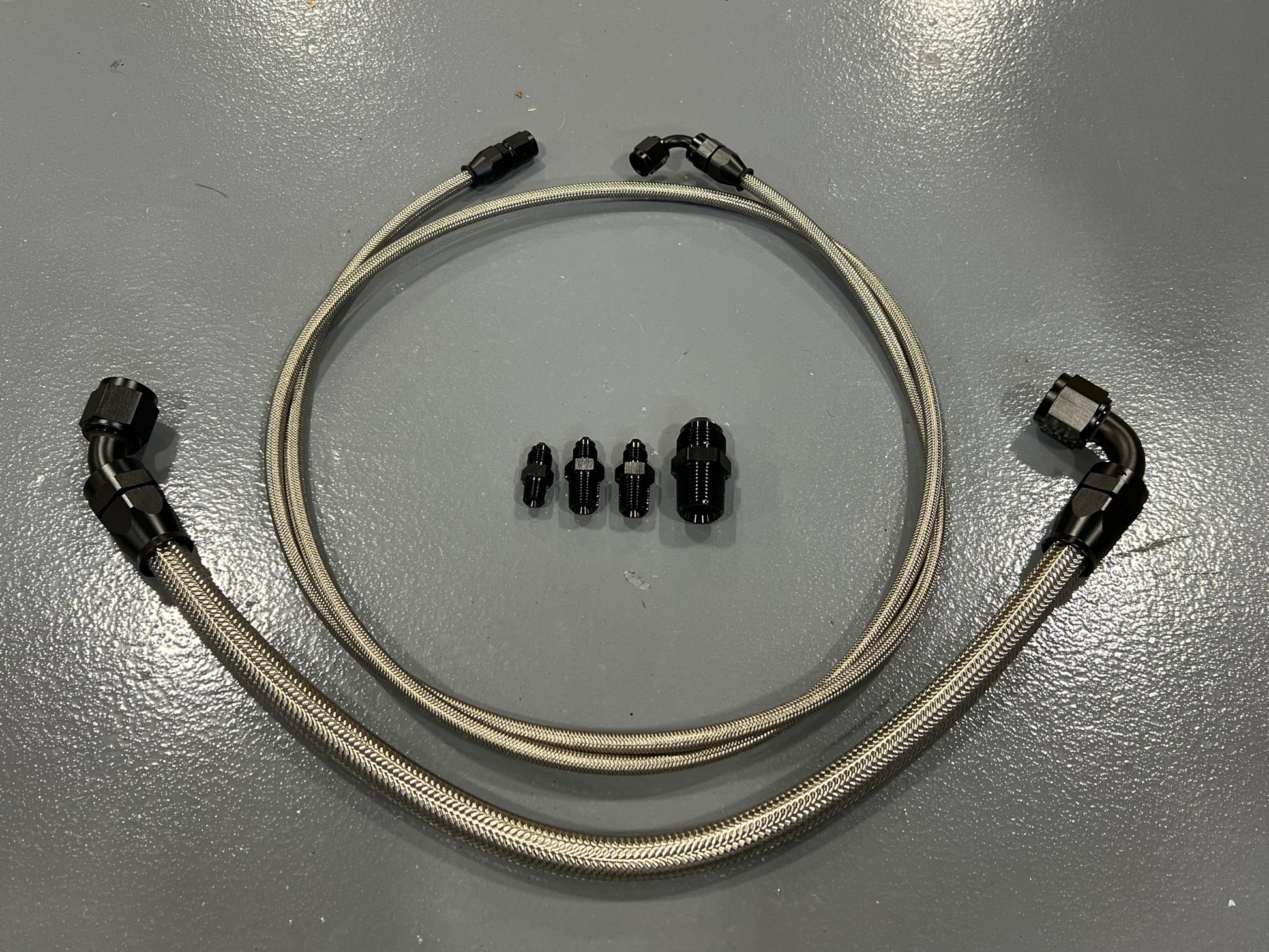

Standard set Includes:

-4an feed line with (2) 1/8npt to -4an fittings. (1 90* end and 1 straight end) 42" Long

-10an drain line with (1) 1/2npt to -10an fittings (90* ends on both ends) 26" Long

*This Oil Line kit was built to be used with our F-body V2 T4 and V2 A/C T4 Turbo Kits*

Optional: T4 Turbo Drain Flange can be added to your order if needed. It is a Straight -10an male fitting on it. Bolt to your turbocharger drain location for the line to hook up to. Optional as some turbochagers do not take a flange such as Comp 3bb (threaded fitting) and others such as smaller T4s take an angled -10 fitting off the flange.

Custom sized lines available. Put the legnths you need in the special instructions. Please allow 1 week build time for custom length lines. If making over 60" for the feed and 36" for the drain, additional costs apply.

Typically in stock, however please plan to allow for a 3-5 day build time. Thank you!
