04-13 Truck Stage 2 Fuel System - 525's

04-13 Pick-up Dual 525 Assembly w/ Stage 2 Plumbing Kit

*Assembled per order, please allow a few days to complete prior to shipment.

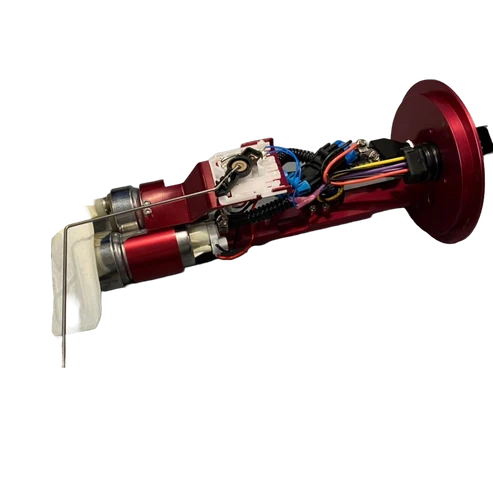

-Huron Speed CNC Hanger assembly for Dual 525 pumps. Includes all internal pump and sensor wiring with pass-through connector to plug in our included Dual Pump Wiring harness.

-E85 Compatible

Fuel Level sensor info:

04-13 pick-ups will include a bracket for the 04-07 sensor.

Stage 2 Fuel System

-Huron Speed CNC Hanger assembly w/ Dual 525 pumps *requires you to swap over your stock fuel lever sender*

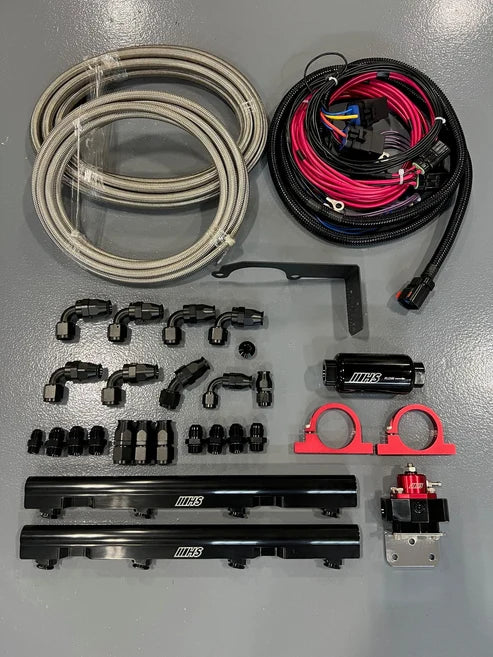

-Full plumbing kit includes CNC Billet Truck Fuel Rails, a Huron Speed Stage 2 Fuel Pressure Regulator with bolt on mount, Huron Speed Stage 2 10 Micron Fuel filter with billet mounts, -8an PTFE Feed line, -6an PTFE Return line. All fittings and PTFE hose included

-Plug and Play wiring harness plugs into the hanger assembly and includes all powers, grounds, and trigger wires to set the 2nd pump up off a Hobbs switch or Eboost2/3. Primary pump uses the factory trigger.

Note: Photo shows (2) Filter brackets. Due to the size of the stage 2 filter, only (1) bracket is included.
