Huron Speed TBSS T6 Kit

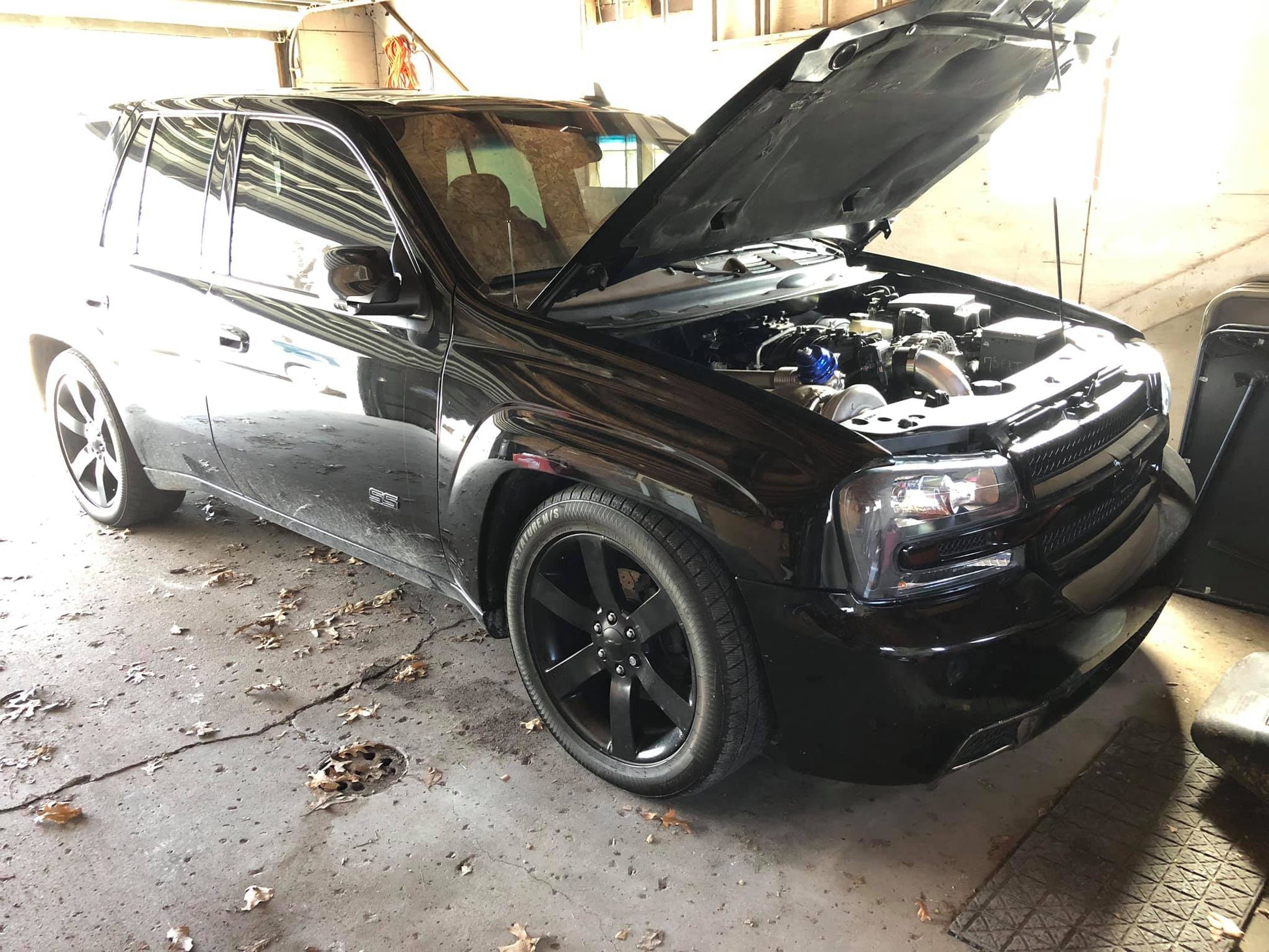

Huron Speed Trailblazer SS T6 Kit

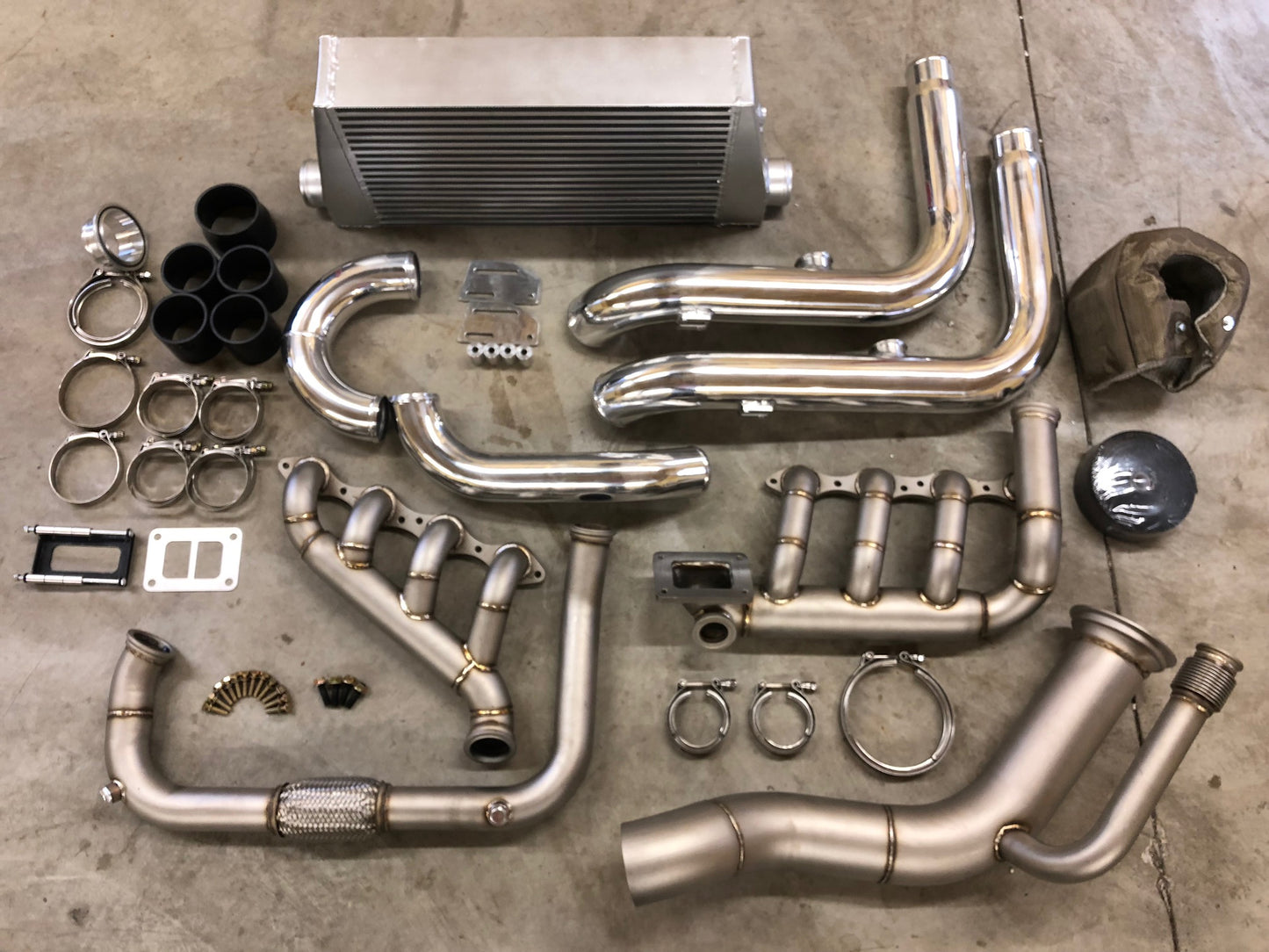

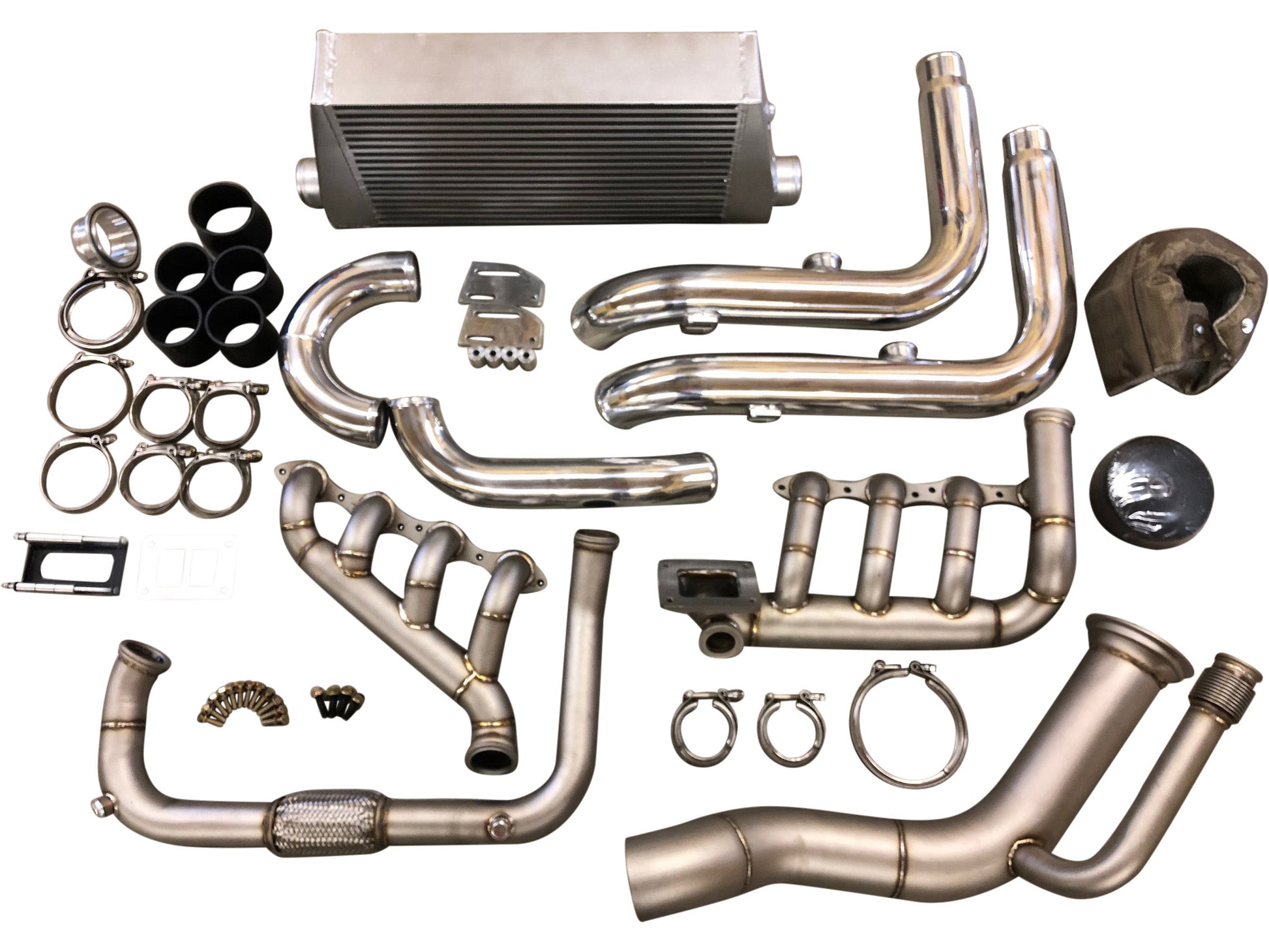

Kit Information:

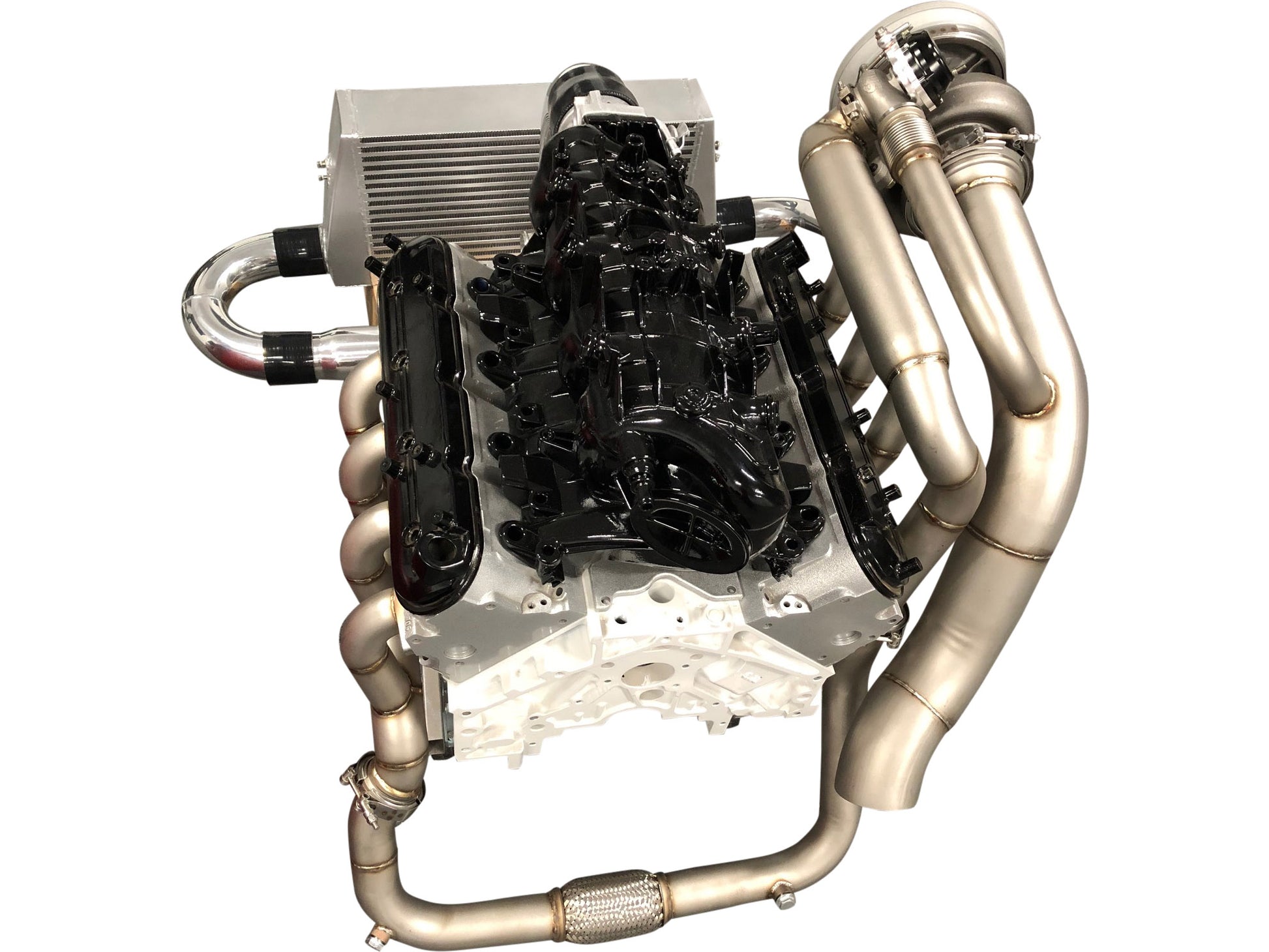

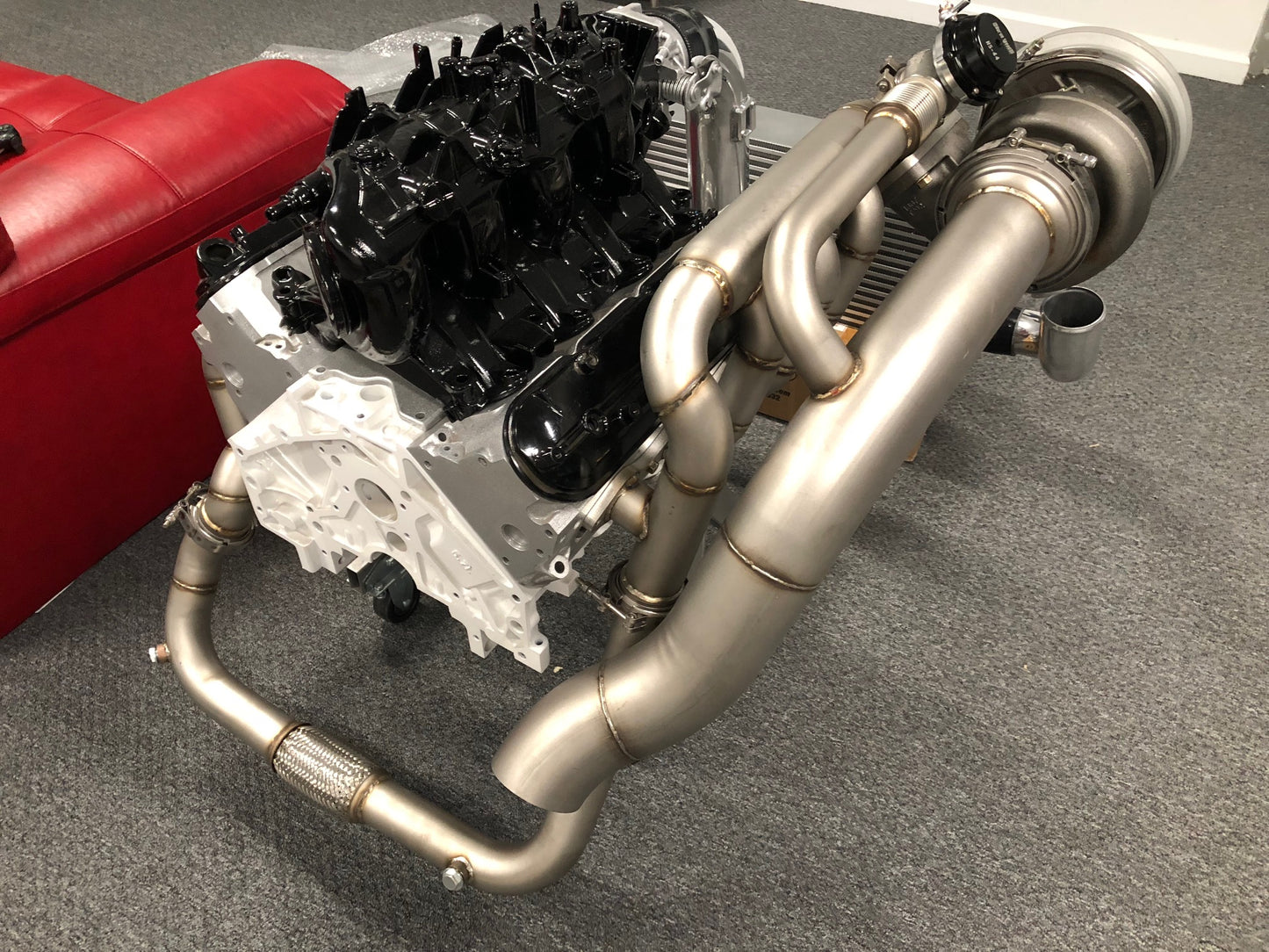

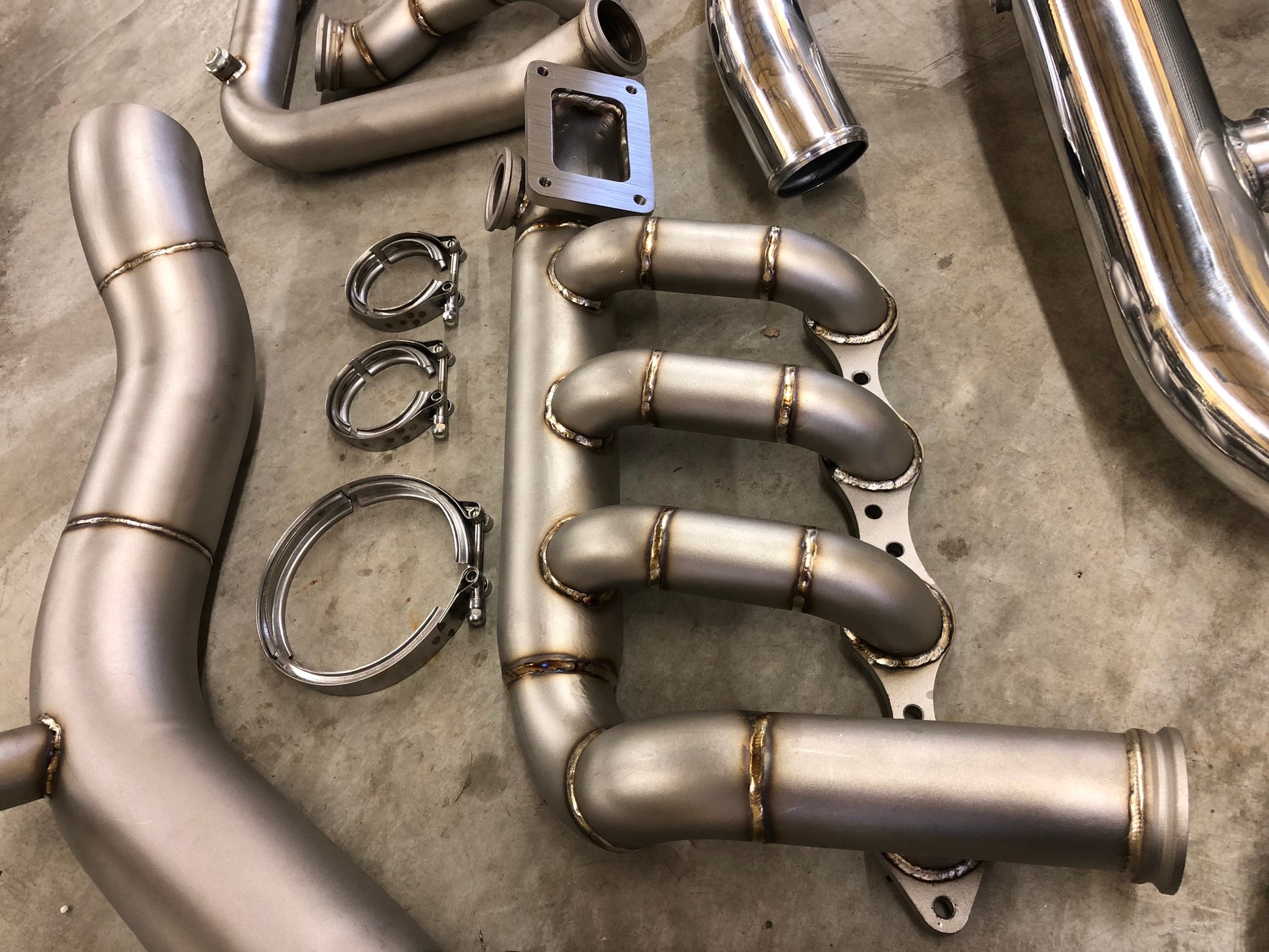

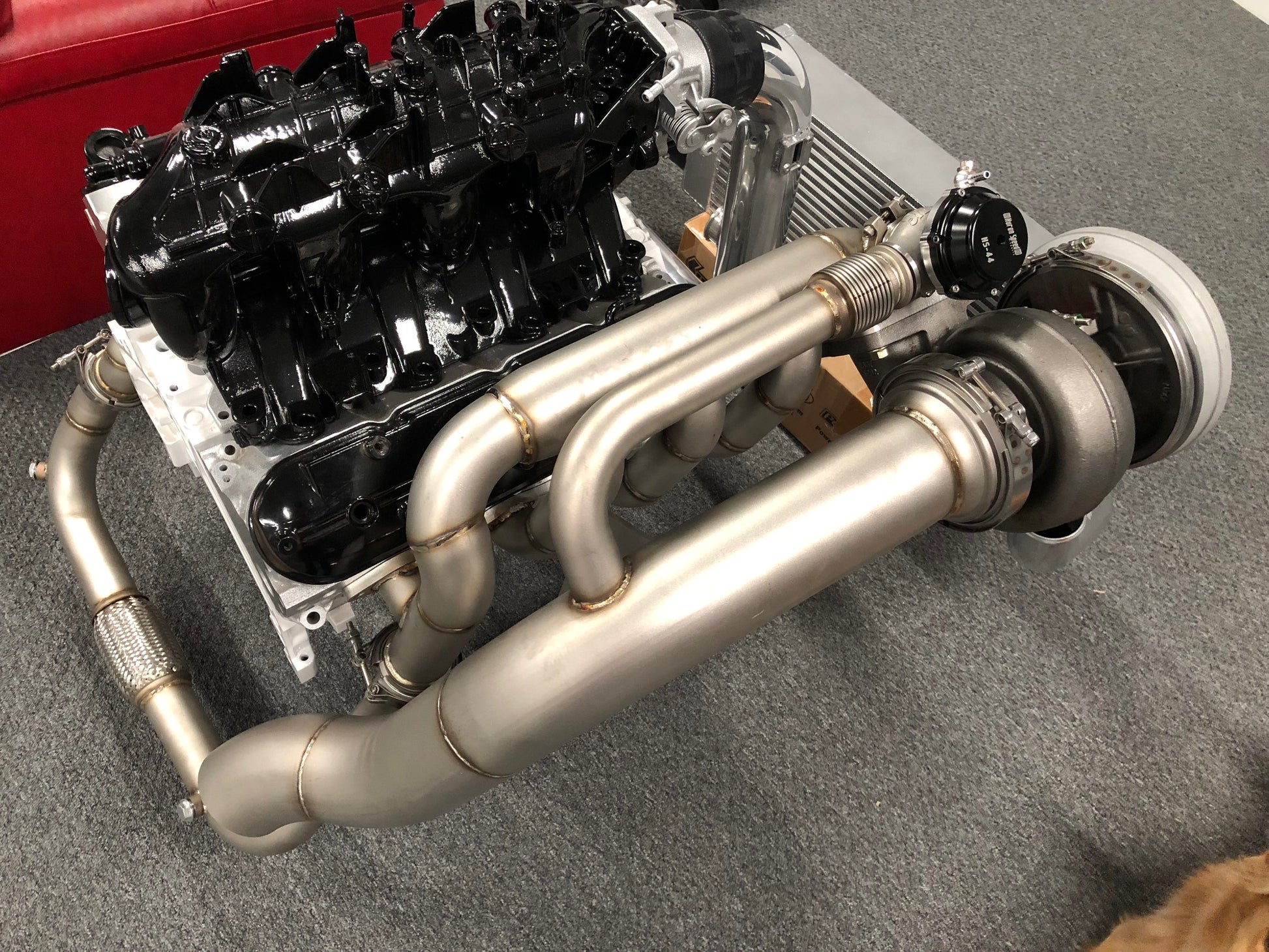

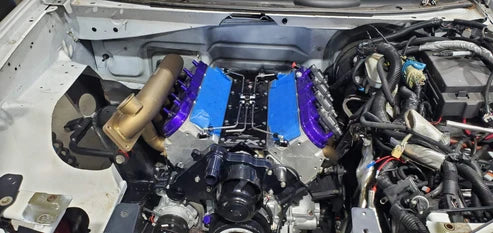

*Stainless Steel, Vbanded, extra thick .120 wall T6 Manifold

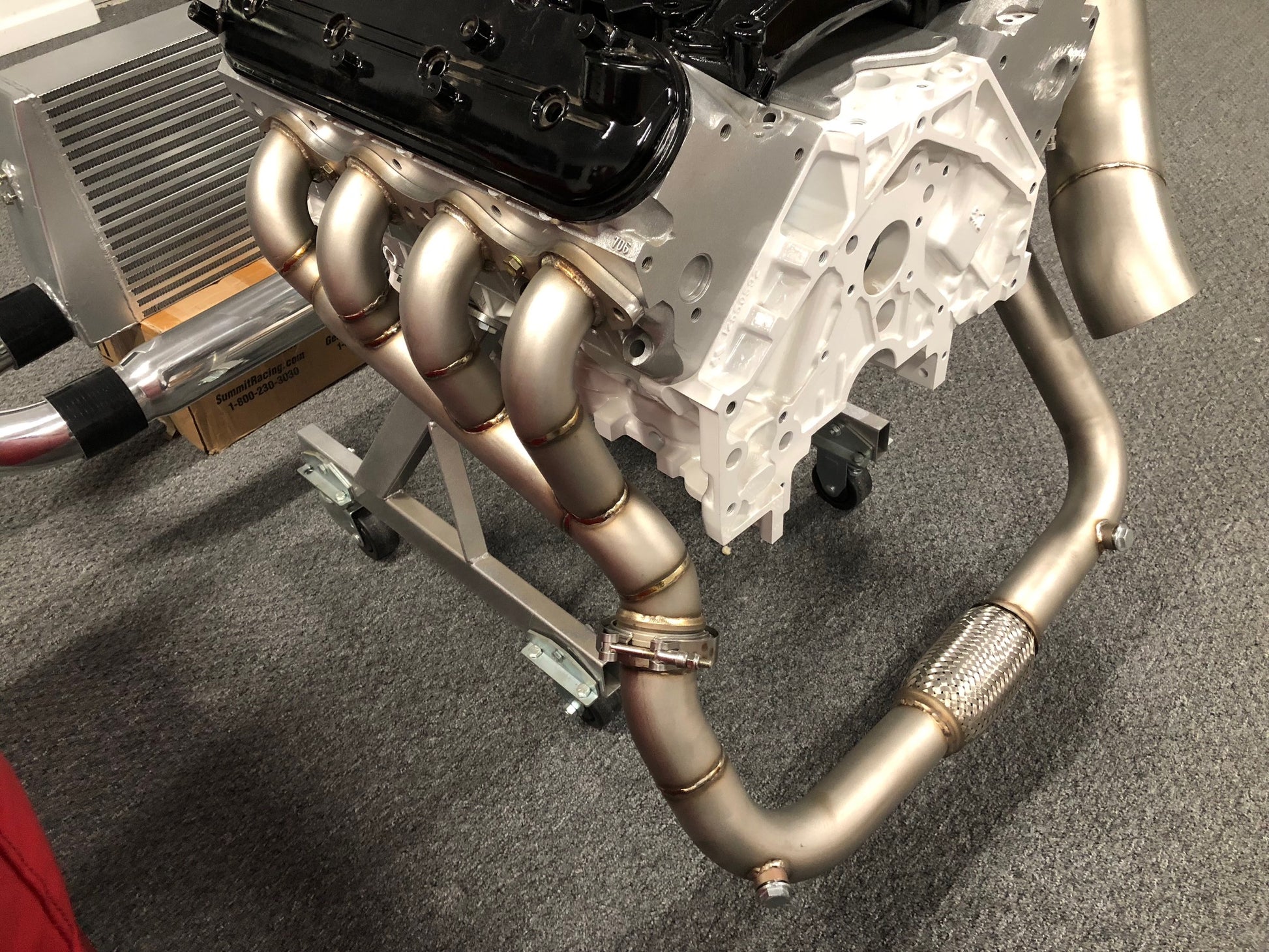

*Stainless Steel, Vbanded, drivers side tubular manifold for easy installation

* 2.5” Stainless Crossover with 44mm WG flange and bungs for primary O2 sensors. V-banded for easy installation

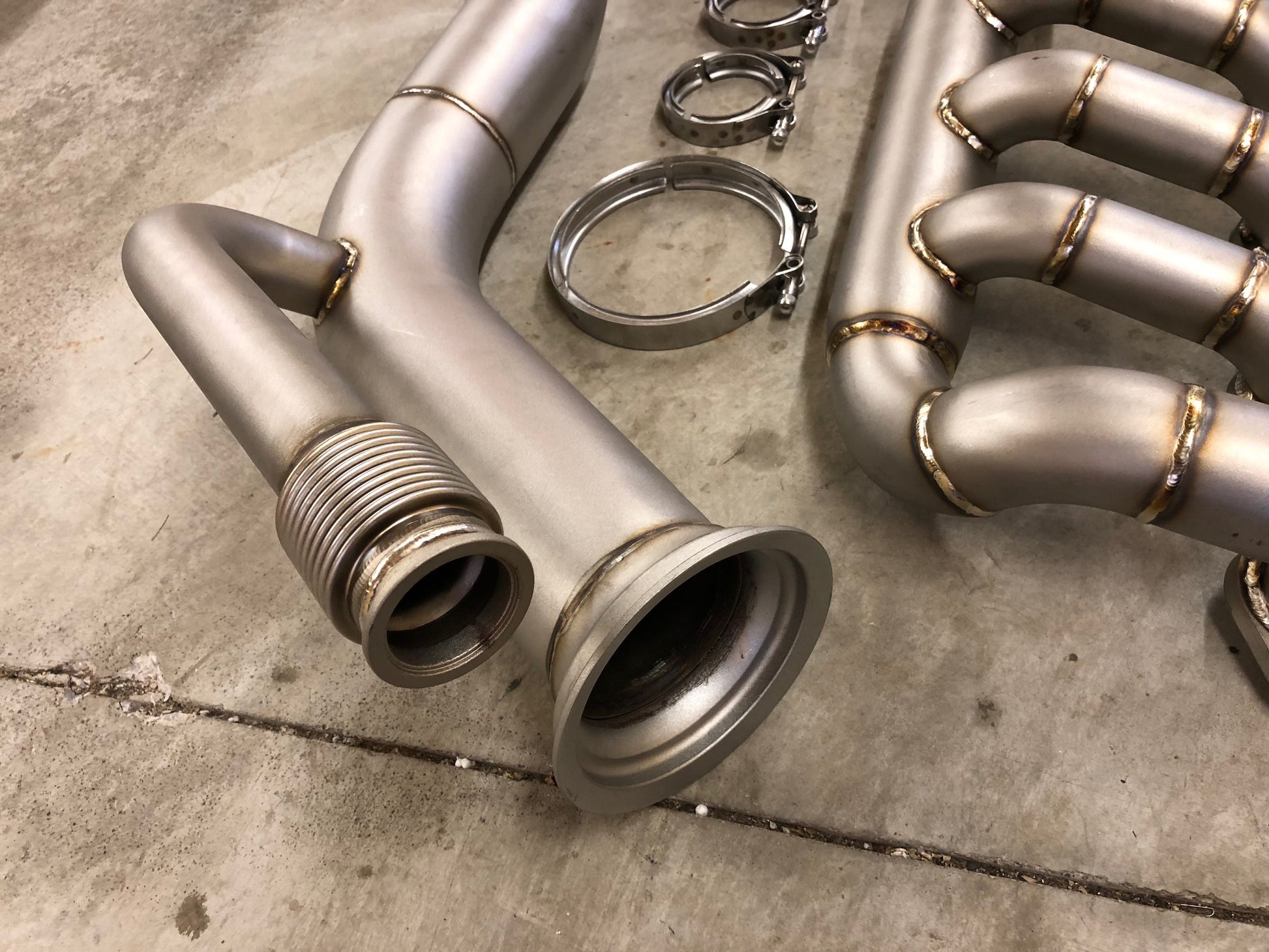

* 5" to 4" 1-piece dp. S400 Flanged.

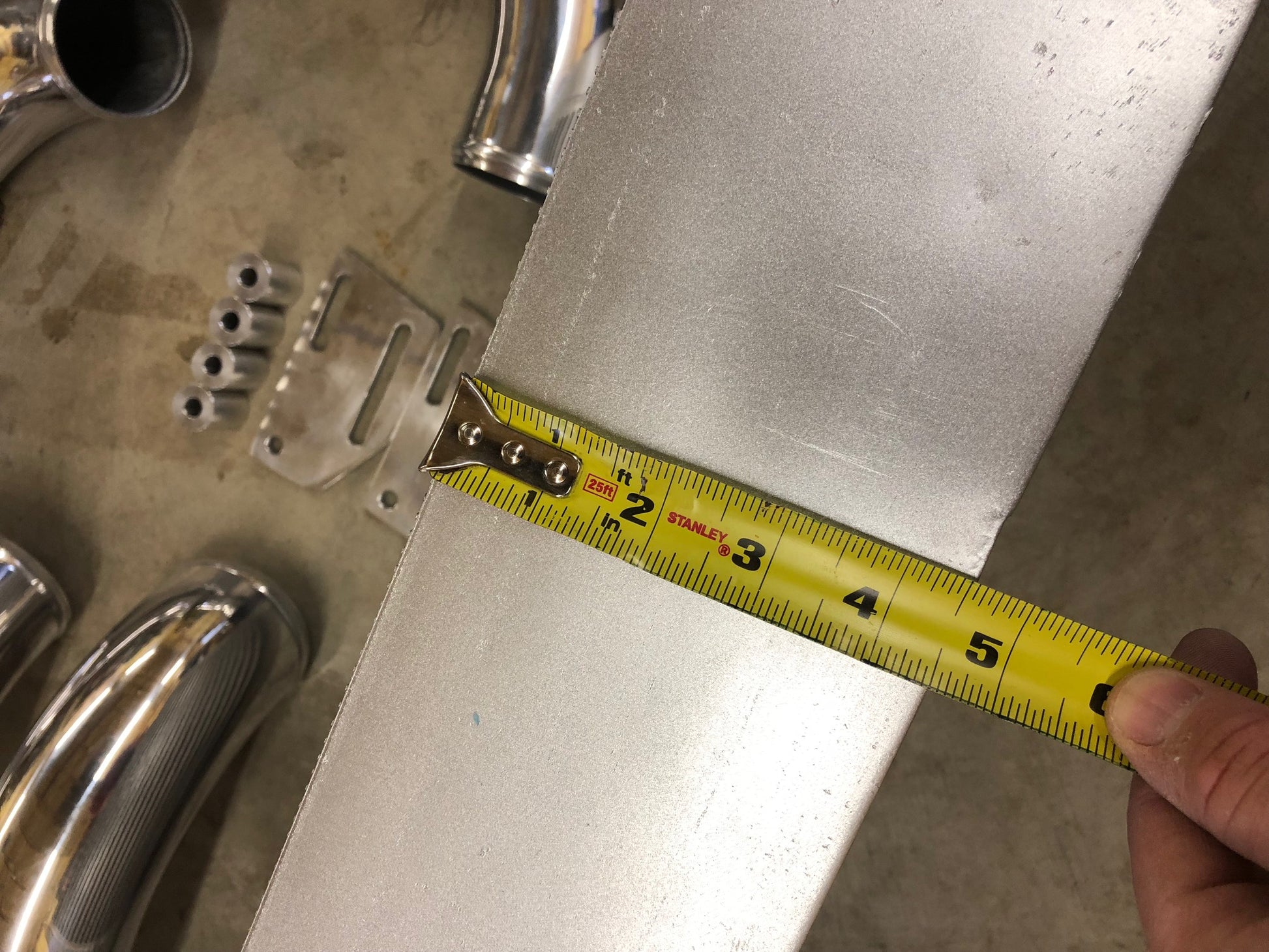

* Extra large Black Series 4.5" Thick Intercooler included. Drill/Bolt on brackets included, optional weld on brackets available.

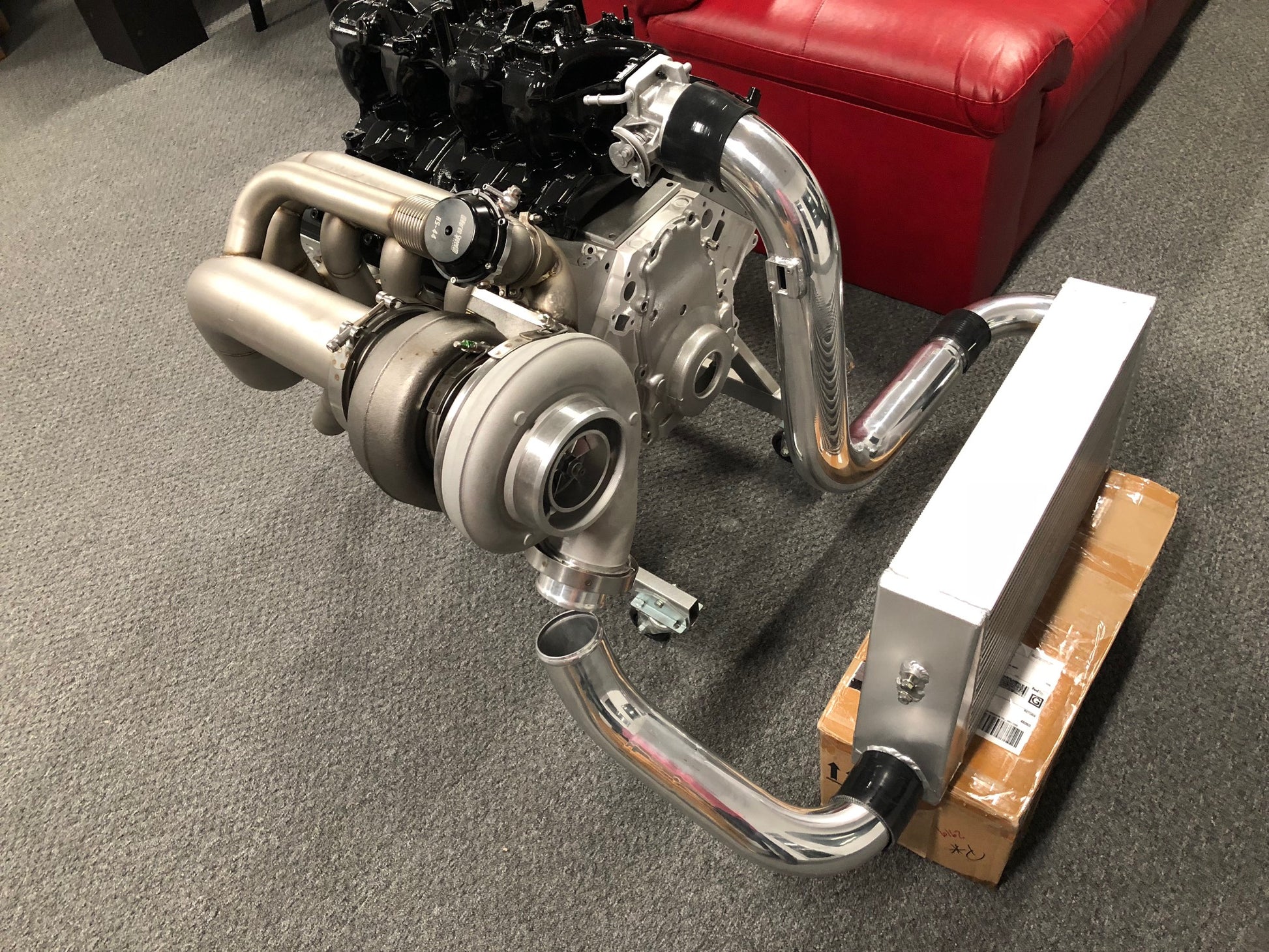

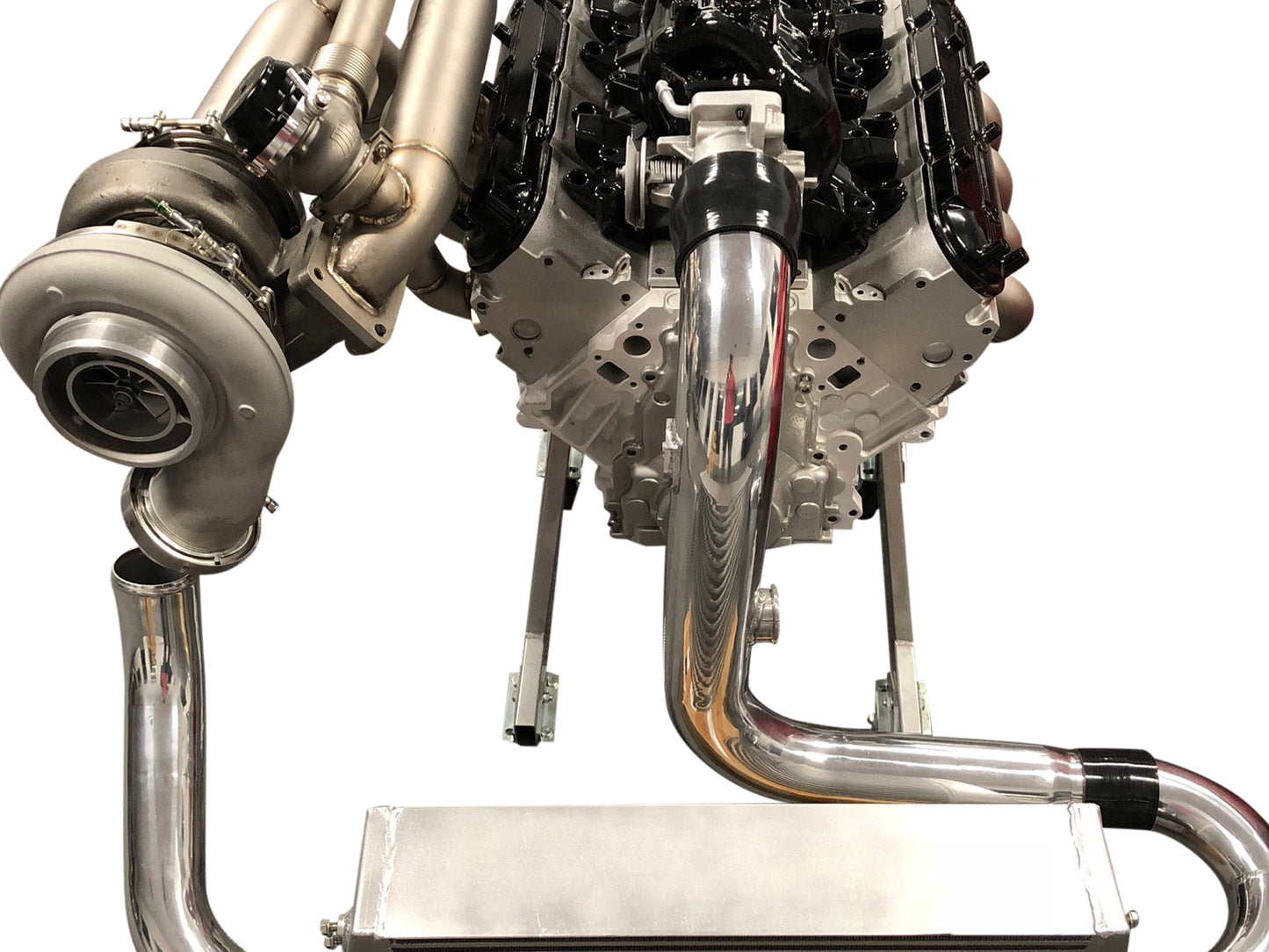

* Aluminum Cold side piping from Turbo to Intercooler and Intercooler to Throttle Body with 50mm BOV flange and threaded IAT sensor bung. Piping included to fit both OEM intake as well as a Holley Hi-Ram.

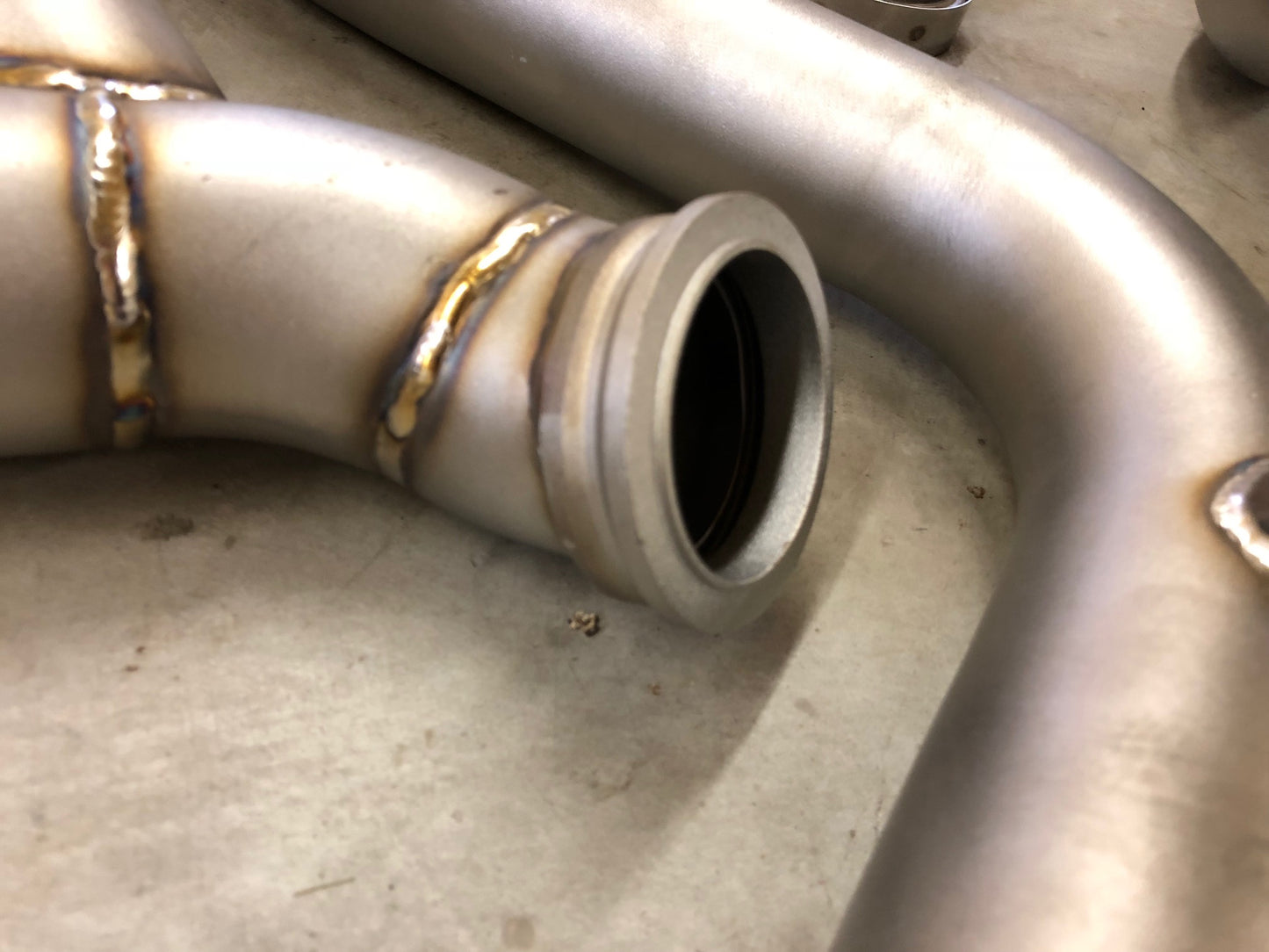

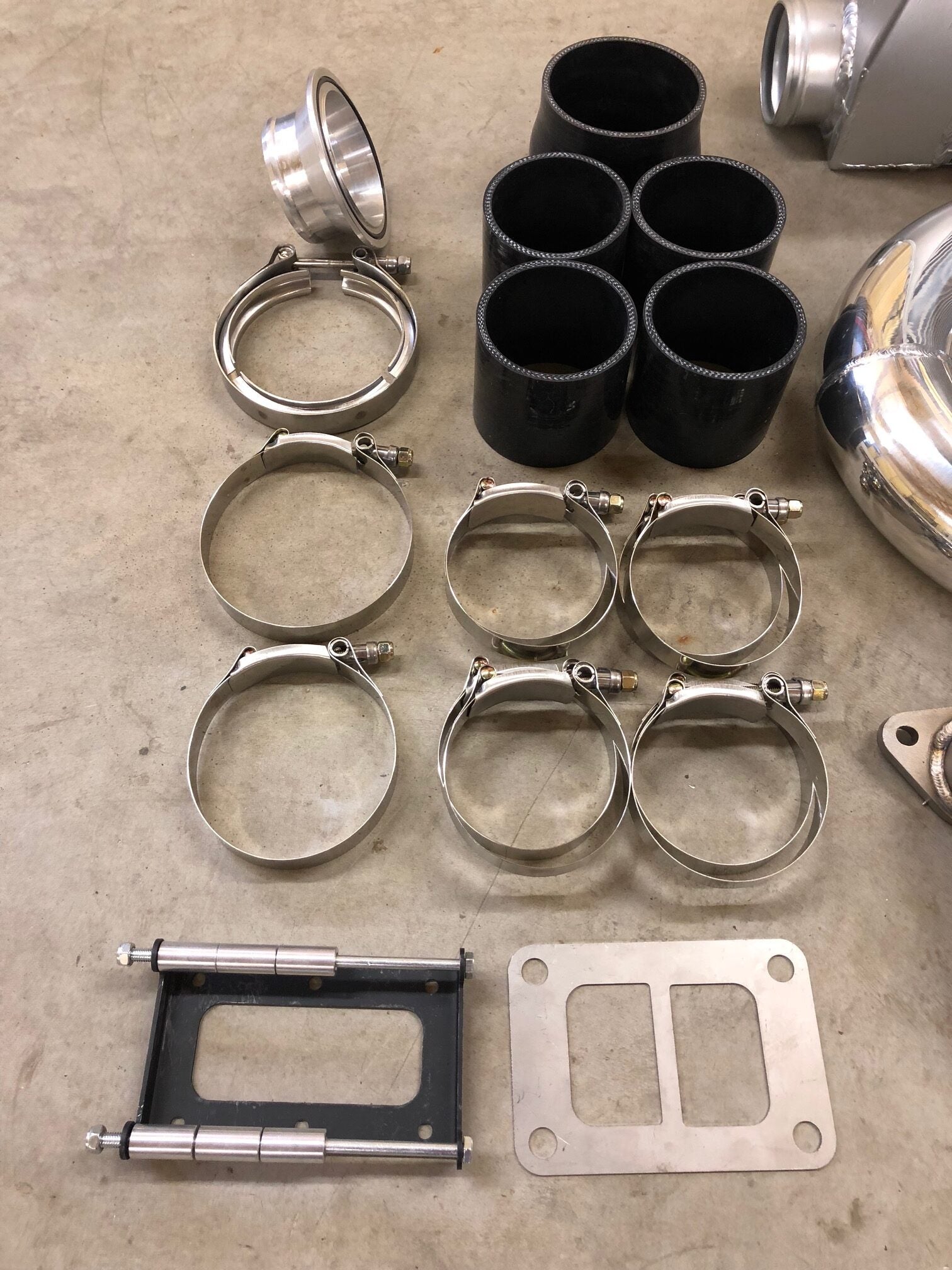

* All necessary couplers and clamps, only straight couplers are used in this kit to avoid any worries of blowing out elbow couplers! Entire hotside consists of all v-band connections

* Grade 8 Bolt/Hardware Kit included!

* T6 Oil Feed and Drain Line kit INCLUDED

* T6 Turbo Blanket INCLUDED

* 50' Roll of Black Heat Wrap INCLUDED

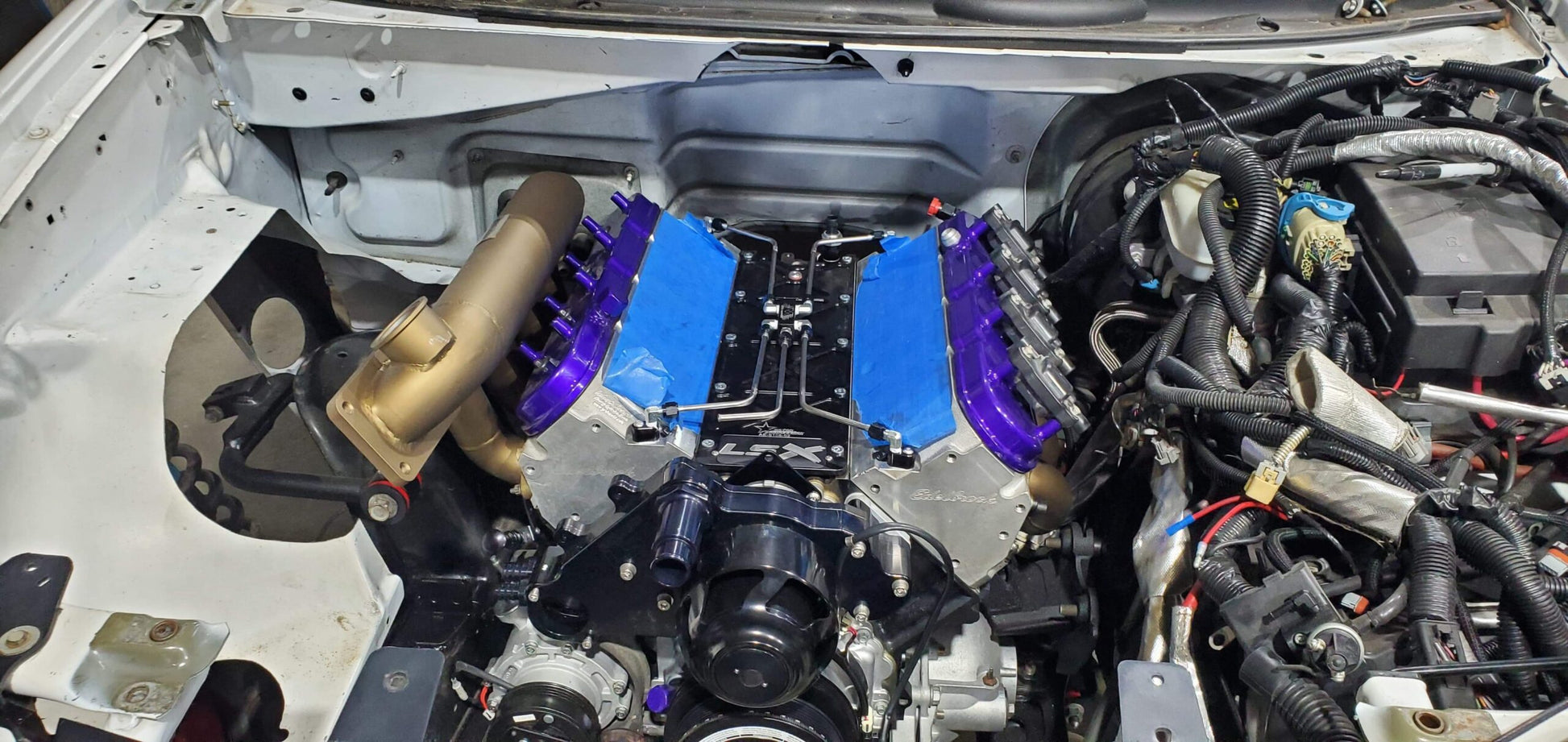

* Coil Pack relocation brackets for passenger side and proper length plug wires for the relocation INCLUDED

*Can retain AC with some minor bending of the lines.

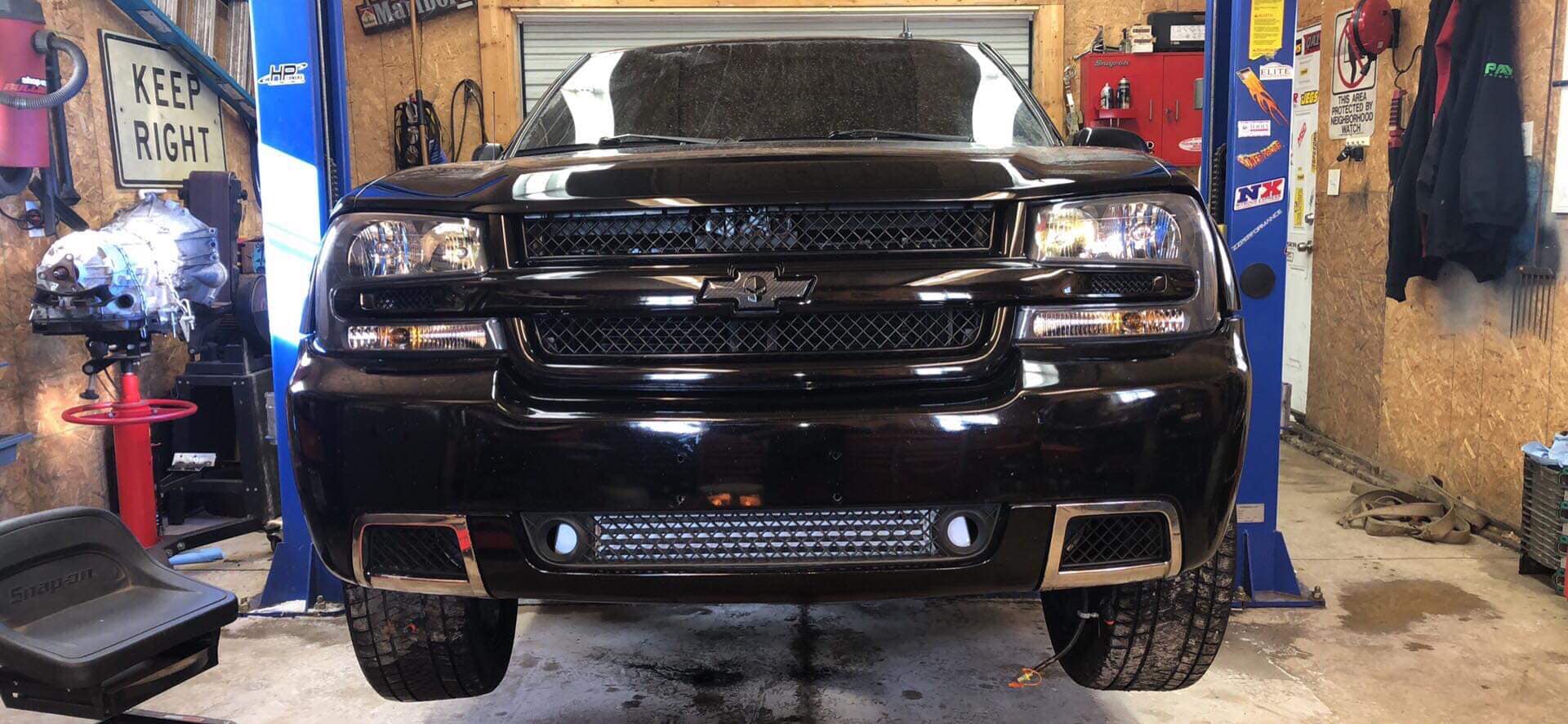

*Kit requires trimming of passenger side inner fender metal. Removal of front bumper bar for the intercooler placement and drilling for the intercooler bracket hardware.

*Kit is designed around a T6 S400 turbocharger. If running a larger Race Cover you will need to modify the hood for fitment, a standard cover fits under the stock hood.

-Cold-side fitment built around the Spal e-fans. LS1 fans will not fit without modifications.

**Piping kit only, requires other items noted to run, vehicle will not run without these outside sourced items completed by you, therefore sold as show only.

-Add in your Turbo, Wastegate and BOV to make complete from the drop-down menu's!

* Silver intercooler shown, kit will include Black finish on Intercooler.
