V3 T4 Turbo Kit Group Purchase DEPOSIT
V3 T4 Turbo Kit Group Purchase DEPOSIT
*This sale OPENS on Black Friday, November 29th at 10am EST. You will see the Deposits on the Website listed as Out of Stock until this time. They will become available to purchase at 10am EST on 11/29/24.
*This item is the $1000 non-refundable DEPOSIT for our Group Purchase sale running from 11-29-24 through 2-8-25. This purchase will place you into our sale and your final payment owed to receive the kit will be determined at the end of the sale on 2-8-25 depending on how many total people enter the sale. If you did not see information on this sale or the pricing structure, please visit this link for all of the information on the sale, pricing structure, FREE incentives, drawings, and giveaways. Being one of the first few to place this deposit will get you FREE turbo components with your kit as well so do not wait to get in!
Sale broken down very simply in 3 steps:
1.) You will pay your $1000 deposit here to enter
2.) You will pay your Final Payment at the sale's end (This amount will be determined via the structure below, more that enter the lower your final payment will be
3.) You will pay for any add-ons or upgrades if you wish via the drop down menus. They are available at both Deposit and Final Payment time so you can pay for some at either time, or some at both, your choice! If you pay for your DEPOSIT now + Additions during the sale, this does not mean you do not owe anything at the end, you will still owe your Final Payment on the Kit based on the pricing structure.
All Sale information including the current total entered, pricing brackets, give-away info/winners, etc: https://www.huronspeed.com/pages/f-body-group-purchase
Note: Please see the details page in the links above to check shipment times per kit after sales end. Check this and make sure you are content with it BEFORE placing your deposit. We cannot refund your deposit for ANY reason, so please do your part in reading the delivery details before entering.
If you do not add in any additional parts or turbo components now with the deposit, the same options and same great pricing on them will also be available with the final payment!
Any additional items may be shipped with the kit or drop-shipped direct. We will do whatever is the quickest option to get you the parts as we understand the timeframe needs.
Kit Information:

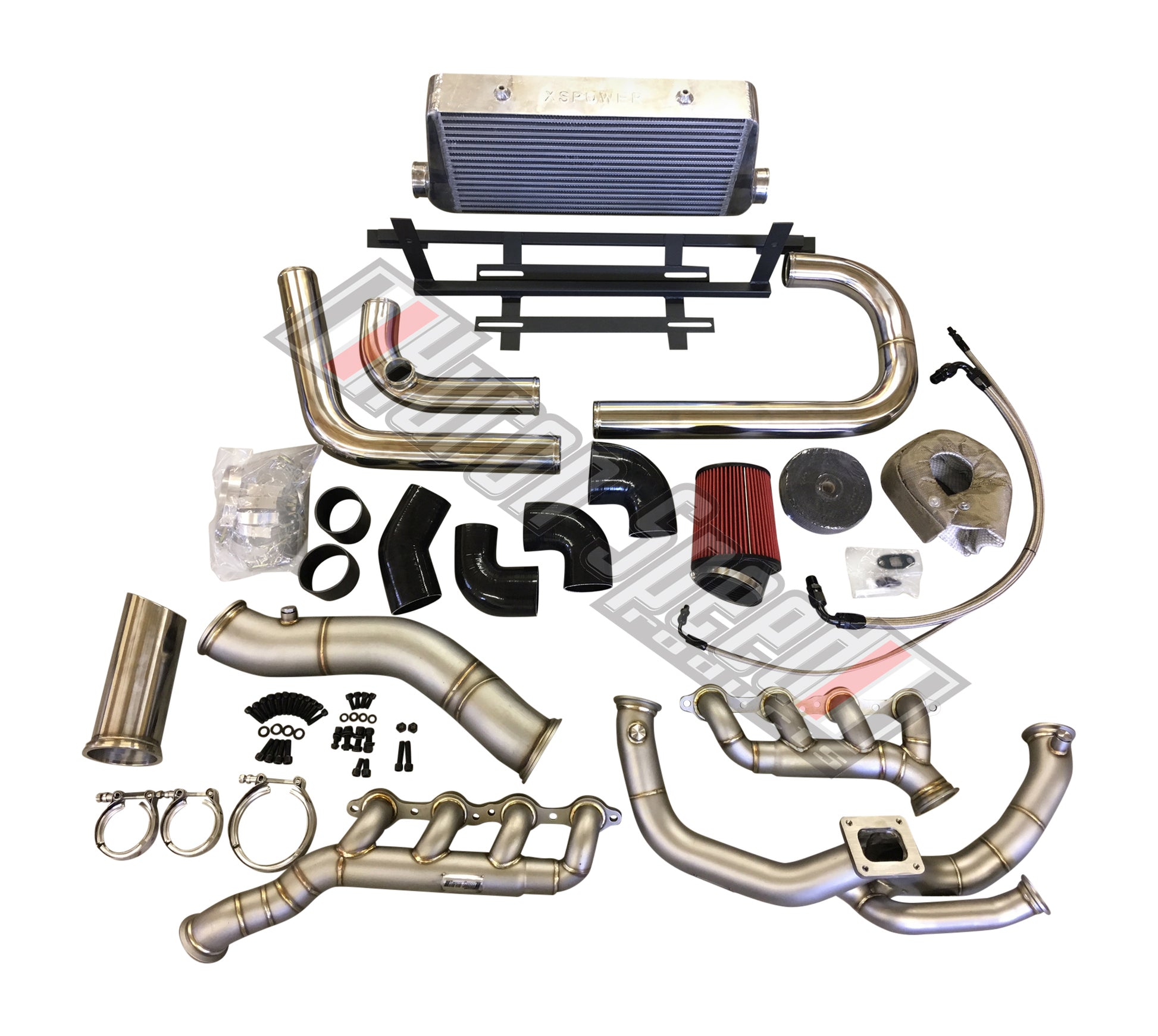

Huron Speed Products 98-02 LS1 F-body V3 T4 Turbo Kit
Includes:
-.120 wall Stainless Steel, V-banded Manifolds.
-Extra thick, V-banded, 1-piece Stainless Crossover pipe that retains the Sway Bar and features our new Wastegate location set-up to eliminate boost creep
-(2) 2.5” V-band clamps for easy installation of the crossover pipe to the manifolds.
-3” 1-piece Downpipe with Wideband O2 bung and plug.
-(1) 3" V-band clamps for easy installation of the downpipe.

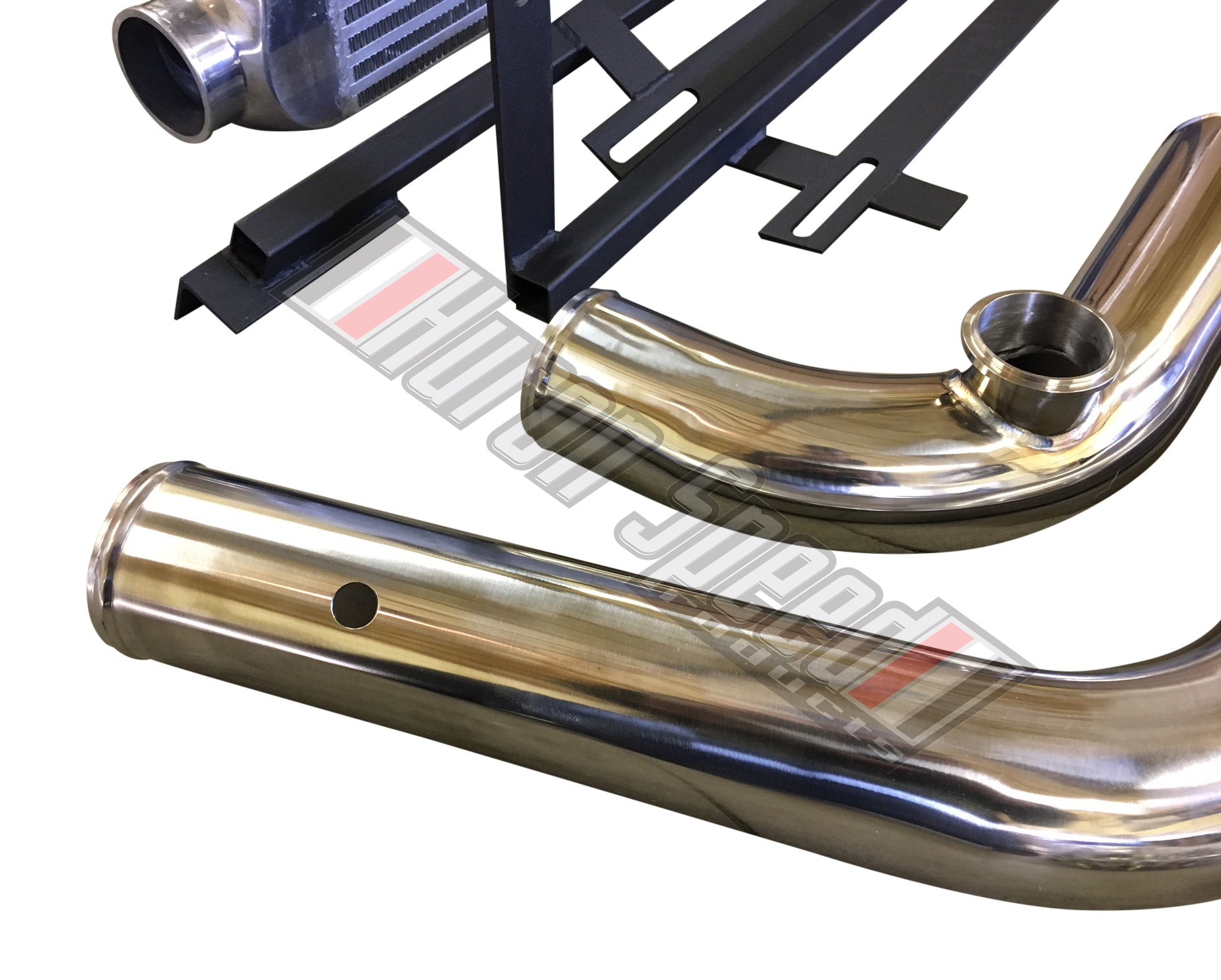

-3" POLISHED ALUMINUM Cold side piping from turbo to FMIC to Throttle Body with Pre-Drilled IAT Sensor hole.
-Oil Feed and Drain Line Kit including -4an Feed line, -10an Drain line, and all required fittings with turbo drain flange
-T4 Turbo Blanket
-4" Turbo Air Filter designed specifically for this kit
-50' Roll of black Heat-wrap
-50mm Blow-Off Valve Flange on Cold side piping
-4" core front mount Intercooler
-All exact, specific couplers
-All exact, specific T-Bolt clamps
-F-body front mount intercoolers brackets
-Hardware to mount Turbo, intercooler brackets, and intercooler
All the new features listed above of the V3 kit!
Advantage of having the Huron Speed customer service
Requires Turbo, Wastegate, BOV, and Pusher Fans to complete or you can order those
with the kit as well from us depending on your budget and goals! Requires removal of the A/C.
Here are some new features of the new Huron Speed V3 T4 Turbo Kit:

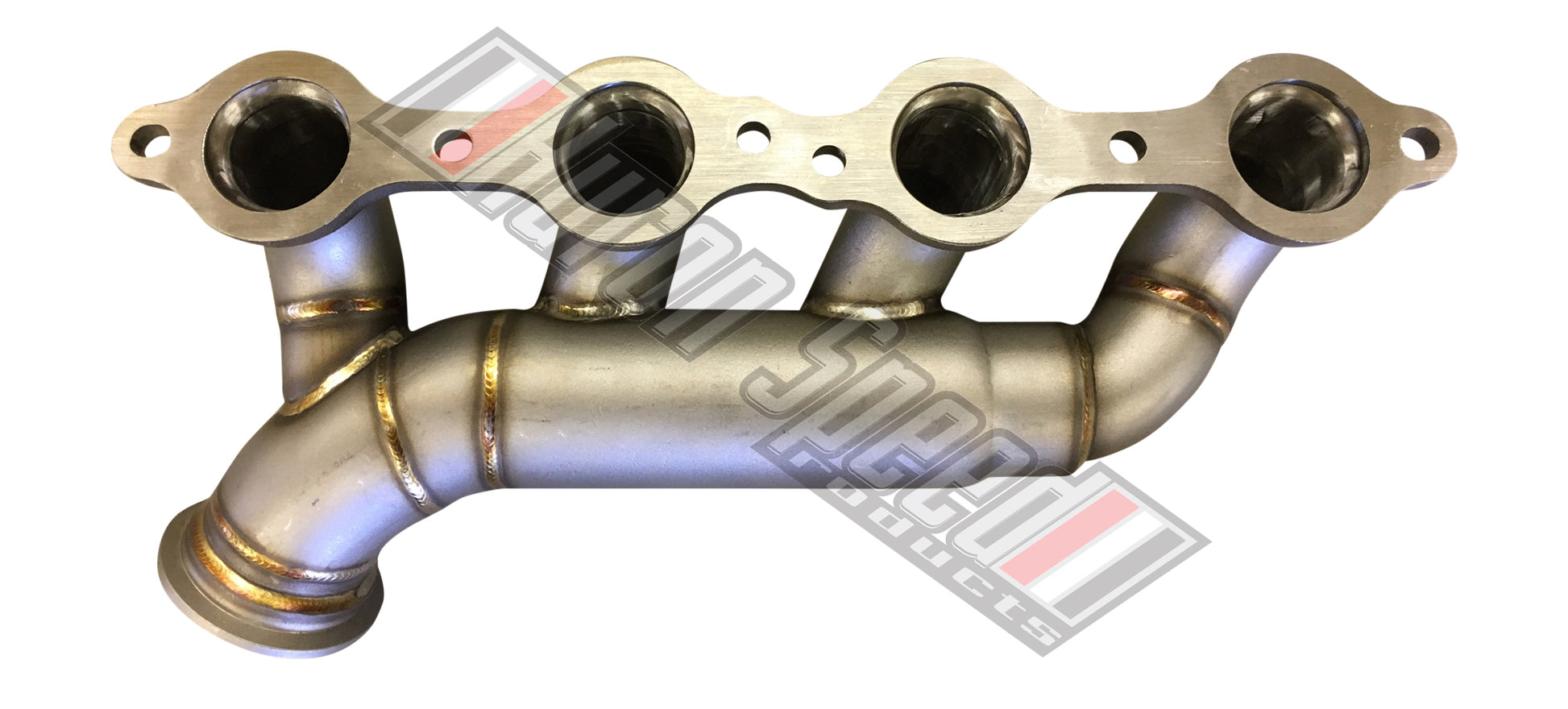

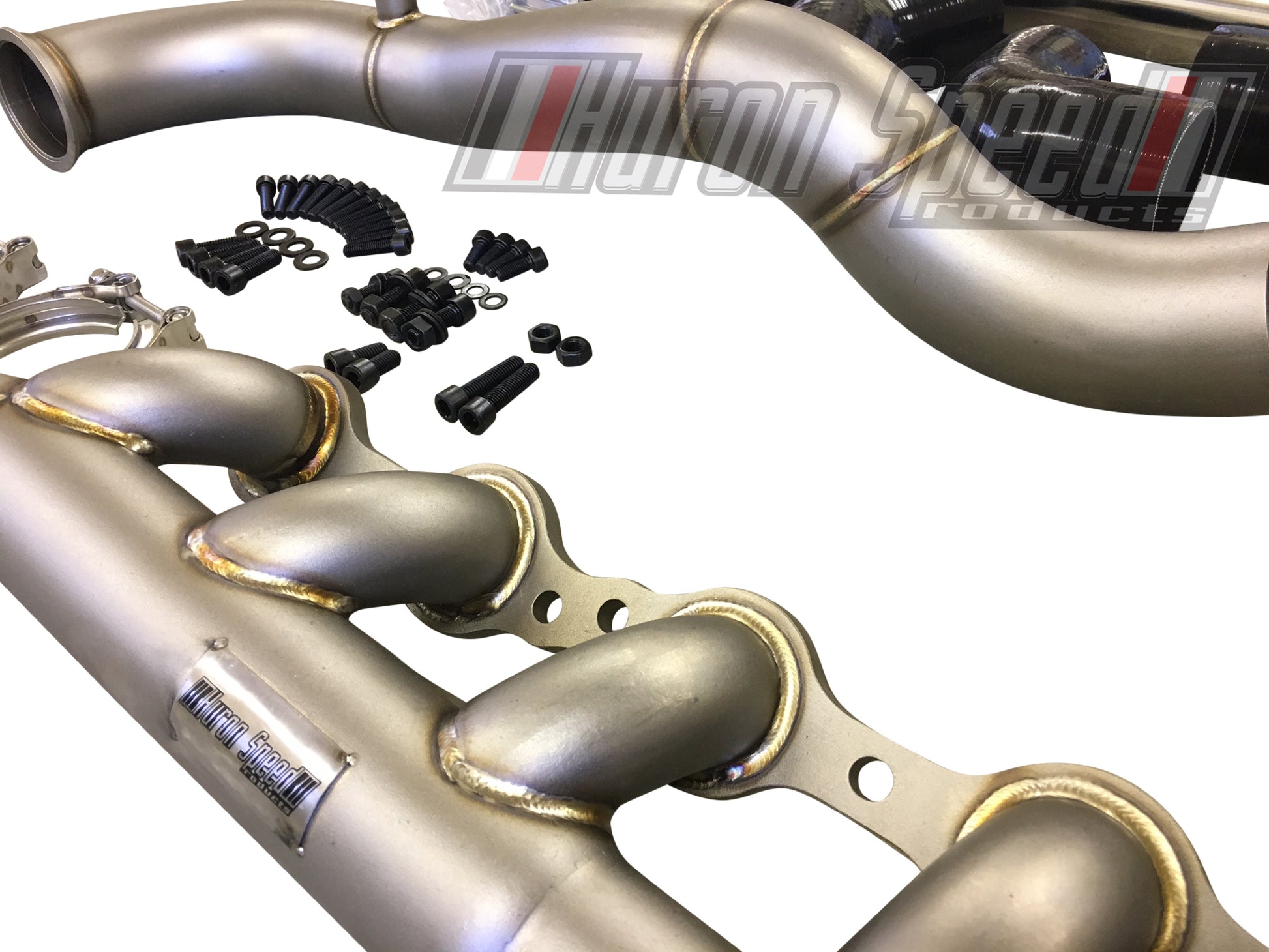

-Included Manifolds. No need to have to track down rusty Truck Manifolds anymore. Where as they worked great, we now supply manifolds for you to keep the entire process much more simple on your end! These new manifolds are made from .120 wall 304 Stainless. If you know your materials, you know this is VERY heavy duty stuff. Most headers are made from .065 wall making these manifolds nearly twice as thick of material to prevent cracking from holding up the weight of the turbo. They are also V-banded for ease of install and made to RETAIN the OEM alternator location!
-New Wastegate Location. We have seen a few cases where boost creep became a minor issue, but why have to worry or hassle with it at all? We took what we know needed to happen to get a better flow of exhaust to the waste gate and made it happen. Where as our previous kit and most others out there pull from the merge of the 2 banks with a 38mm flange, we are now pulling exhaust from BOTH banks individually in the direction of flow, and merging those into larger piping and a larger 44-45mm WG flange! Good-bye boost creep!
-Keep your Sway Bar. Where as not as big of a demand, we still would get street car customers who really wished to retain their front sway bar. With a little fabrication, we made it happen! We routed the crossover to run just under the front sway bar on the passenger side and right above the bar on the drivers side without sacrificing any ground clearance. We also did this while keeping a larger SS/WS6 sway bar in the OEM location!
-Retain the Low Oil Level Sensor. Our previous kit required the removal of the low oil level sensor for down pipe clearance. With this set-up, we managed to RETAIN the low oil level sensor and still fit the 3" down pipe through the factory K-member!
-Fit a Mid-Frame T4. Our previous kit did not have enough clearance to the factory radiator to fit a mid-frame T4 turbo such as a PT88, a T4 BW, or a Mid-frame Turbonetics nor did the hot side have the proper set-up to support the extra weight. With our new design, and the extra thick stainless piping used on the cold side, supporting the extra weight will not be an issue! Also we managed to find the proper angle on the T4 flange to fit your standard T4 turbo or a Mid-Frame turbo on it while still clearing the factory radiator in the factory, untouched position! Will fit BW S400 T4 turbos with the STANDARD Compressor cover. Choosing the 4" Bumper exit option for these turbos will require a flange swap on your end to mate to the turbo due to the unique flange.
-4" Downpipe option. Available for both 3" and 4" exit turbochargers now, we have developed a 2-piece 4" down pipe that will exit the front bumper on the passenger side. With this, you will still be able to retain the OEM K-member, and your OEM Radiator in the OEM Location! Requires removal of the coolant overflow tank to fit the 4" Bumper-Exit downpipe.
-Wideband O2 bung. This is now standard. We are putting an extra O2 bung in the supplied 3" through K-member down pipe along with a plug so you can run this, or have it there if when the time comes for tuning or logging purposes. This is a standard feature!
All of these new features and still keep the great features of our first kit such as the simple, clean, and effective cold side with brackets and 4" thick core FMIC. Retain the Factory K-member. Retain the Factory Radiator in the Factory Position (now enhanced even for mid-frames!)
